SKU: N08-EU

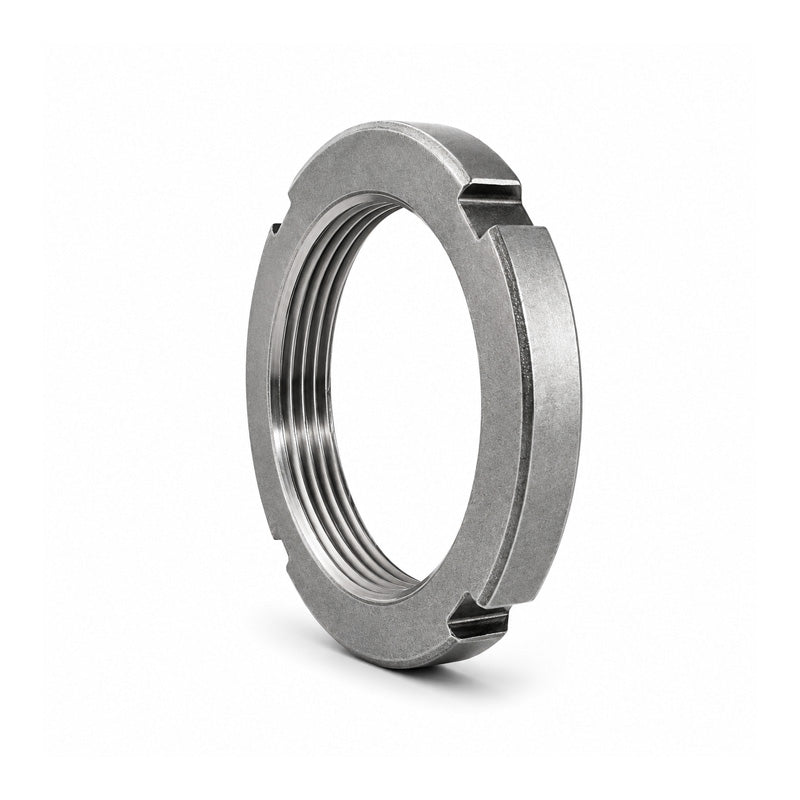

Premier Budget N08 Imperial Lock Nut (Lock Washer Type) 1.563x2.255x0.448 inch
Premier Budget N08 Imperial Lock Nut (Lock Washer Type) 1.563x2.255x0.448 inch
Regular price
£6.59
ex VAT£7.91inc. VAT
Regular price
Sale price
£6.59
ex VAT£7.91
inc. VAT
In stock
Price Break
3+
£5.86
5+
£5.53
9+
£5.47
19+
£5.40
49+
£5.34
74+
£5.27
99+
£4.94
199+
£4.87
249+
£4.81
499+
£4.74
999+
£4.61
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 39.7mm = 1.563 inch
- Outside Diameter:
- 57.28mm = 2.255 inch
- Width:
- 11.38mm = 0.448 inch
Technical
Technical
| G | 1.563 inch |
|---|---|
| Threads per inch | 18 |
| d<sub>1</sub> | 2 inch |
| d<sub>3</sub> max | 2.255 inch |
| B | 0.448 inch |
| b | 0.24 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 17310 lbf |
| Mass | 0.1134 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=HN8-9+lock+spanner">HN8-9 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W8+lock+tab+washer">W8 [Click Here] |
