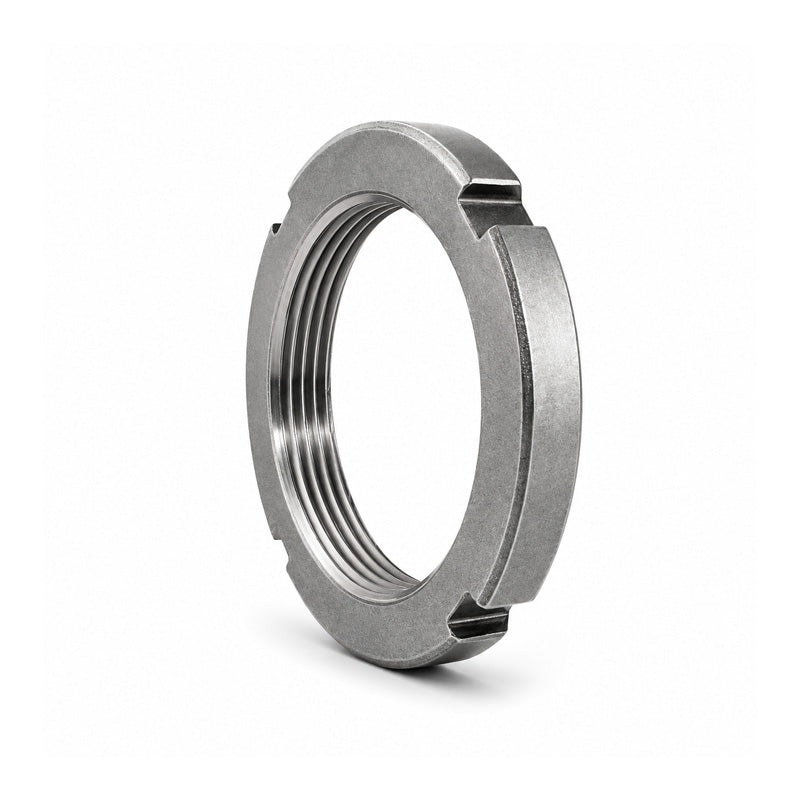

Premier Budget N02 Imperial Lock Nut (Lock Washer Type) 0.586x1.005x0.323 inch
Premier Budget N02 Imperial Lock Nut (Lock Washer Type) 0.586x1.005x0.323 inch
Regular price
£3.91
ex VAT£4.69inc. VAT
Regular price
Sale price
£3.91
ex VAT£4.69
inc. VAT
In stock
Price Break
3+
£3.48
5+
£3.28
9+
£3.24
19+
£3.21
49+
£3.17
74+
£3.13
99+
£2.93
199+
£2.89
249+
£2.85
499+
£2.81
999+
£2.74
Description
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 14.88mm = 0.586 inch
- Outside Diameter:
- 25.53mm = 1.005 inch
- Width:
- 8.2mm = 0.323 inch
Technical
Technical
| G | 0.586 inch |
|---|---|
| Threads per inch | 32 |
| d<sub>1</sub> | 0.813 inch |
| d<sub>3</sub> max | 1.005 inch |
| B | 0.323 inch |
| b | 0.12 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 5845 lbf |
| Mass | 0.0191 kg |
| Associated spanner | <a href="advanced_search_result.php?search_in_description=1&keywords=HN2-3+lock+spanner">HN2-3 [Click Here]</a> |
| Associated locking device | <a href="advanced_search_result.php?search_in_description=1&keywords=W2+lock+tab+washer">W2 [Click Here] |
