SKU: MUCNFL205-SNR

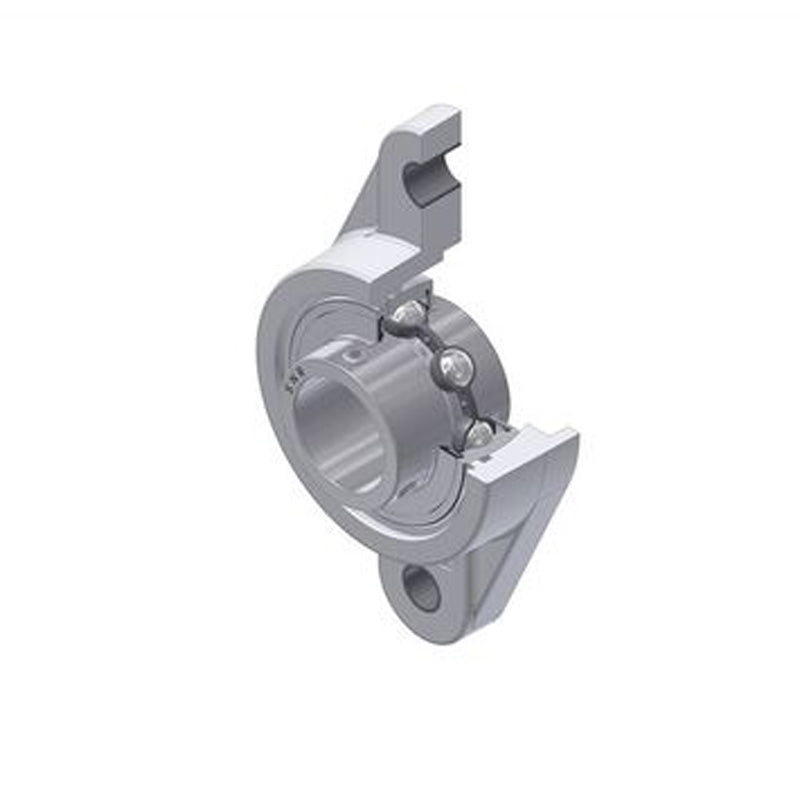

SNR MUCNFL205 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
SNR MUCNFL205 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price
£66.45
ex VAT£79.74inc. VAT
Regular price
Sale price
£66.45
ex VAT£79.74
inc. VAT
In stock
Price Break
5+
£65.79
10+
£63.13
20+
£61.80
50+
£59.81
100+
£58.48
500+
£55.15
1000+
£46.52
Couldn't load pickup availability
Description
Description
SNR MUCNFL200 Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 99.0mm
Technical
Technical
| Bore | 25mm |
|---|---|
| A - Housing height | 29.1mm |
| A1 - Housing foot height / flange height | 13.5mm |
| A2 - Total height from mounting surface | 36.8mm |
| B - Width of Inner Ring | 34.1mm |
| d - Shaft diameter | 25mm |
| e - Distance mounting surface to bearing centre | 17mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 130mm |
| J - Mounting holes distance | 99mm |
| L - Housing width / diameter | 70mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 14.3mm |
| C - Dynamic load rating | 11.9 kN |
| C0 - Static load rating | 6.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.3kg |
| Recommended tightening torque for set screw | 3.9 Nm |
