SKU: MUCFPL206-SNR
SNR MUCFPL206 Metric Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
SNR MUCFPL206 Metric Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
£77.53
ex VAT£93.04inc. VAT
Regular price
Sale price
£77.53
ex VAT£93.04
inc. VAT
In stock
Price Break
3+
£76.75
4+
£73.65
9+
£72.10
19+
£69.78
49+
£68.23
99+
£64.35
499+
£54.27
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description

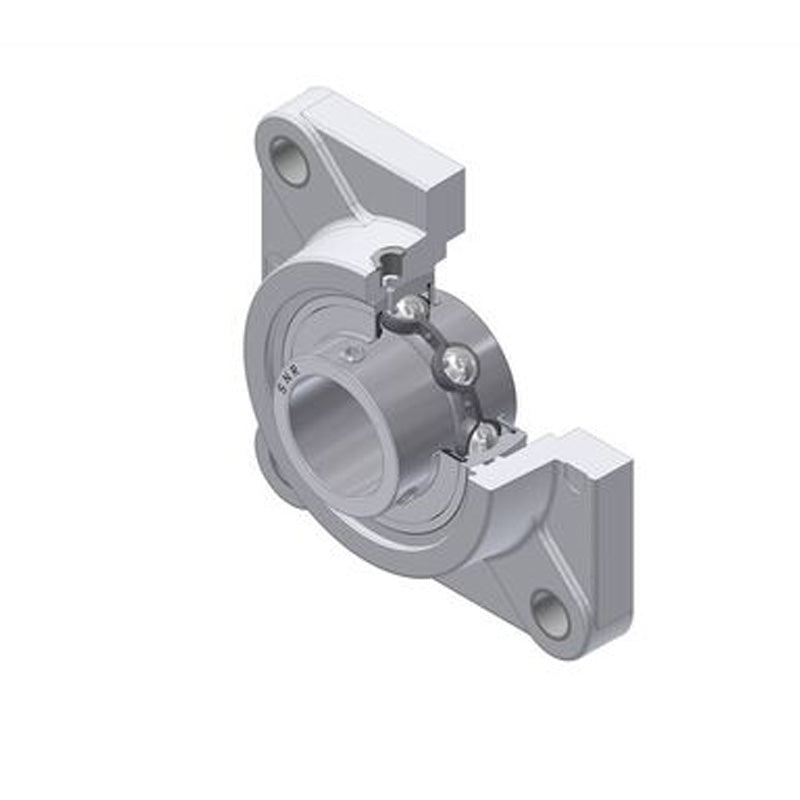

SNR MUCFPL200 Four Bolt Square Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFPL
- Colour:
- White
- Bolt Hole Centres:
- 83.0mm
Technical
Technical
| Bore | 30mm |
|---|---|
| A - Housing height | 31.5mm |
| A1 - Housing foot height / flange height | 14.3mm |
| A2 - Total height from mounting surface | 41.4mm |
| B - Width of Inner Ring | 38.1mm |
| d - Shaft diameter | 30mm |
| e - Distance mounting surface to bearing centre | 19.2mm |
| G - Grease fitting | 1/4-28 inch |
| J - Mounting holes distance | 83mm |
| L - Housing width / diameter | 107mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 15.9mm |
| C - Dynamic load rating | 16.7 kN |
| C0 - Static load rating | 9 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.5kg |
| Recommended tightening torque for set screw | 3.9 Nm |
