RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert
RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
£146.82
ex VAT£176.18inc. VAT
Regular price
Sale price
£146.82
ex VAT£176.18
inc. VAT
In stock
Price Break
10+
£130.67
20+
£123.33
30+
£121.86
40+
£120.40
50+
£118.93
75+
£117.46
100+
£110.12
200+
£108.65
250+
£107.18
500+
£105.71
1000+
£102.78
Share this product
Description
Description
|

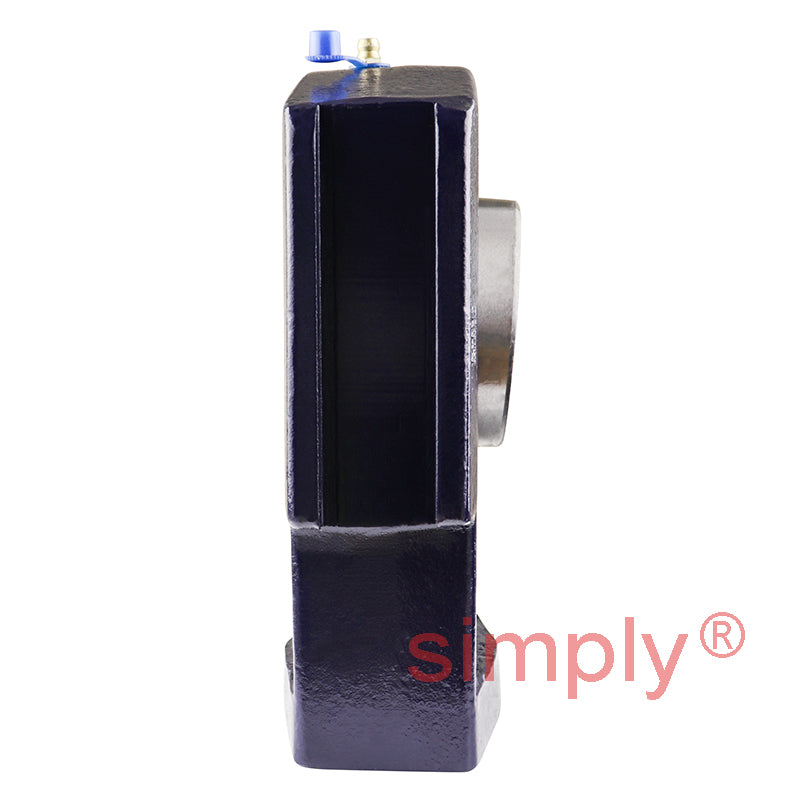

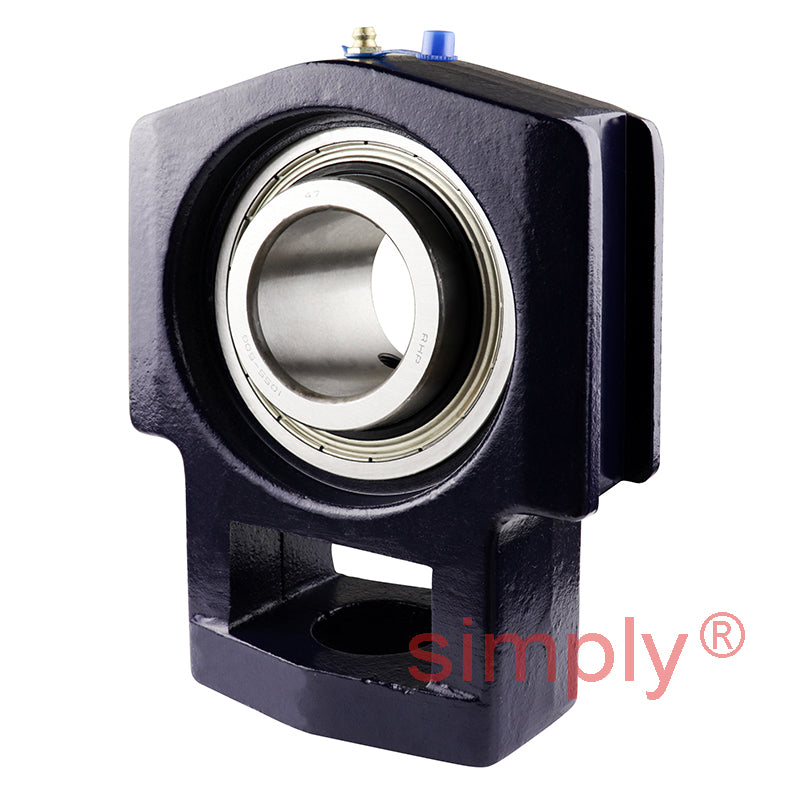

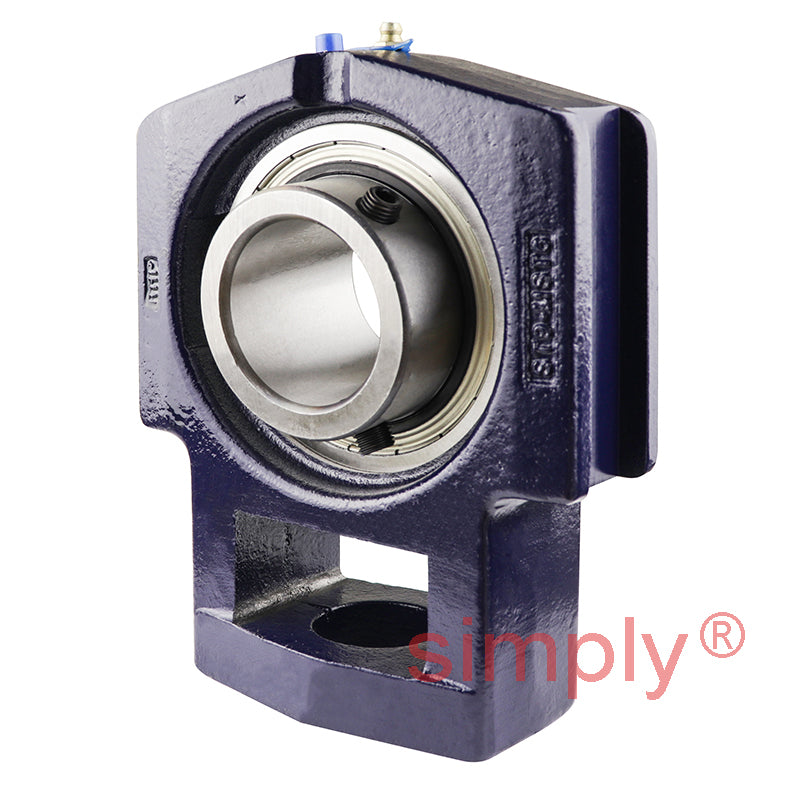

RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 55.55mm |
| B5 | -mm |
| s | 22.28mm |
| d1 | 68.81mm |
| d4 | -mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
