SKU: MST45-RHP

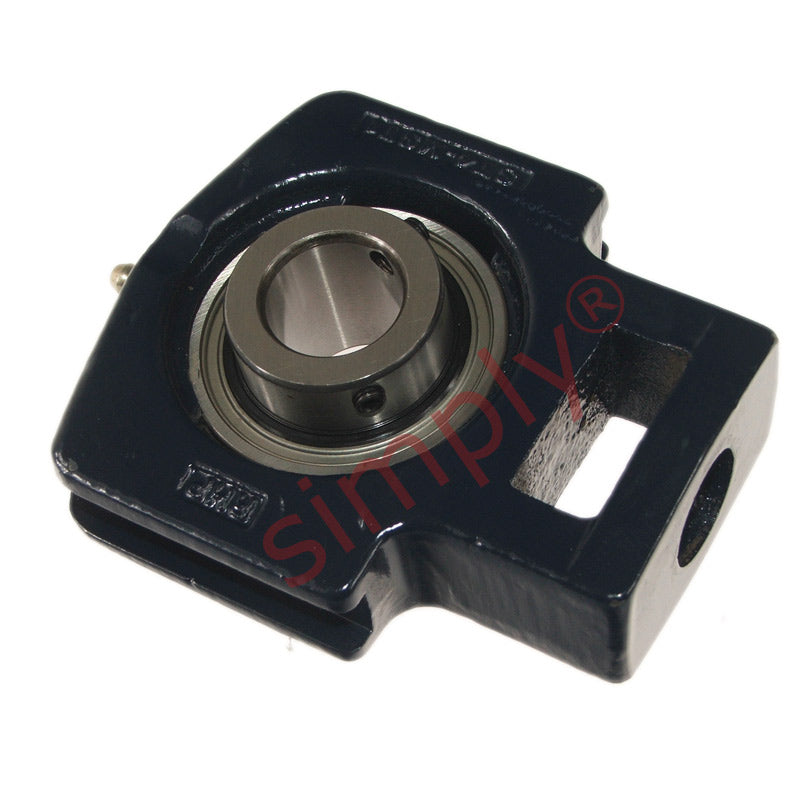

RHP MST45 Cast Iron Take Up Unit and 45mm Bore Insert

RHP MST45 Cast Iron Take Up Unit and 45mm Bore Insert
Regular price £133.41 ex VAT£160.09inc. VAT
Regular price Sale price £133.41 ex VAT£160.09 inc. VAT
Sale Sold out

In stock

Price Break
10+ £118.73
20+ £112.06
30+ £110.73
40+ £109.39
50+ £108.06
75+ £106.73
100+ £100.05
200+ £98.72
250+ £97.39
500+ £96.05
1000+ £93.38
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 45mm
L 151mm
L1 90.5mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B 51.59mm
B5 -mm
s 19.1mm
d1 62.2mm
d4 -mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4mm x 28 TPI
