SKU: MST4-RHP

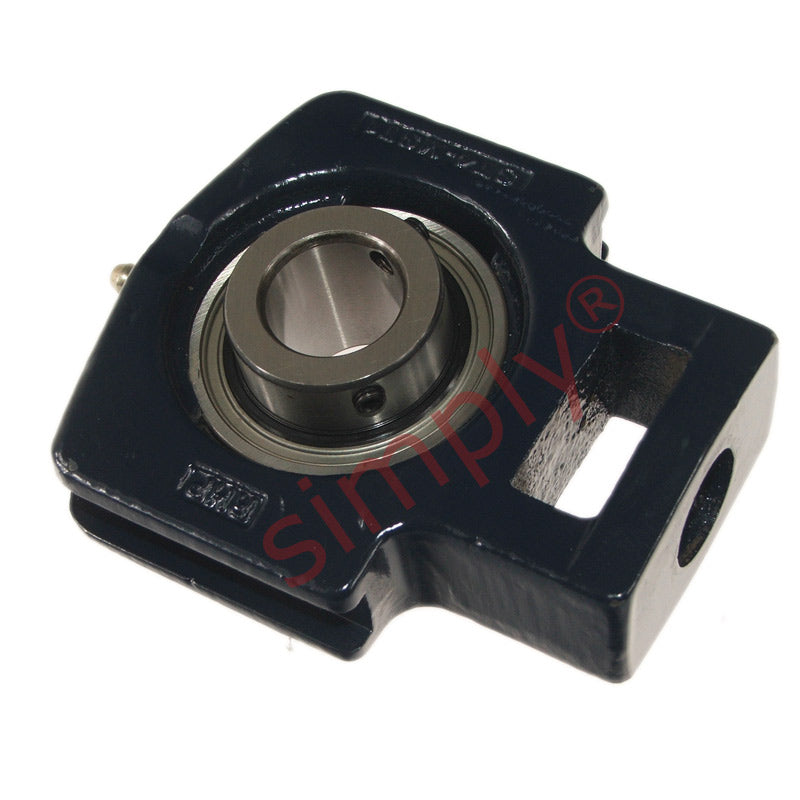

RHP MST4 Cast Iron Take Up Unit and 4 inch Bore Insert
RHP MST4 Cast Iron Take Up Unit and 4 inch Bore Insert
Regular price
£1,041.24
ex VAT£1,249.49inc. VAT
Regular price
Sale price
£1,041.24
ex VAT£1,249.49
inc. VAT
In stock
Price Break
10+
£926.71
20+
£874.64
30+
£864.23
40+
£853.82
50+
£843.41
75+
£832.99
100+
£780.93
200+
£770.52
250+
£760.11
500+
£749.70
1000+
£728.87
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- MST
Technical
Technical
| Bore | 4 inch |
|---|---|
| L | 12.5 inch |
| L1 | 7.5 inch |
| L2 | 1.26 inch |
| L3 | 1.496 inch |
| L4 | 6.89 inch |
| L5 | 4.055 inch |
| H | 10.256 inch |
| H1 | 6.004 inch |
| H2 | 3.366 inch |
| H3 | 9.252 inch |
| N | 2.146 inch |
| A | 3.878 inch |
| A1 | 3.248 inch |
| A2 | 2.187 inch |
| B | 4.625 inch |
| B5 | - inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| d4 | - inch |
| Dynamic load | 157000 N |
| Static load | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 22.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
