SKU: MST3-RHP

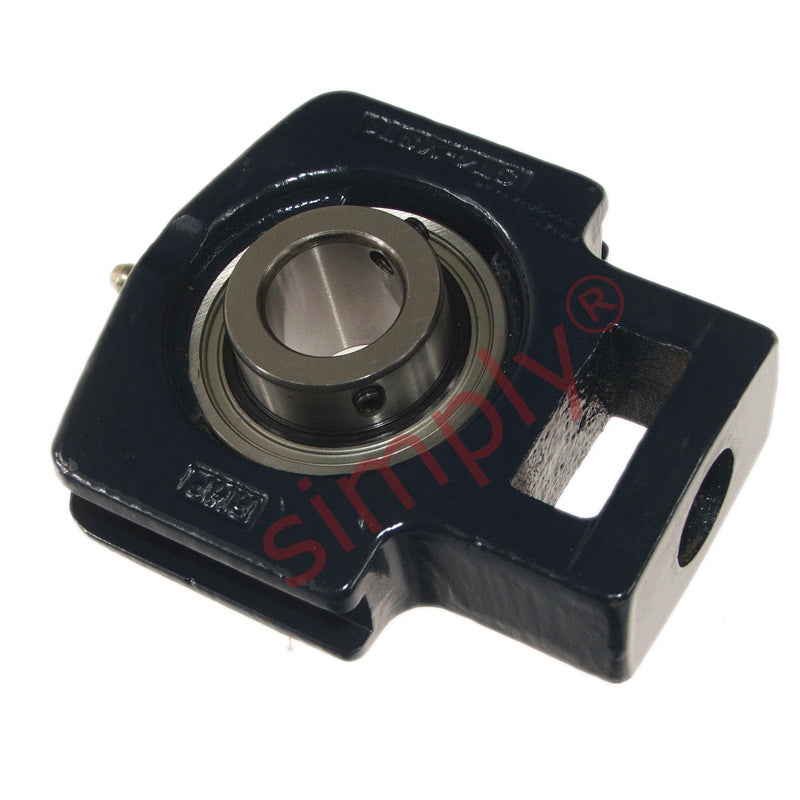

RHP MST3 Cast Iron Take Up Unit and 3 inch Bore Insert
RHP MST3 Cast Iron Take Up Unit and 3 inch Bore Insert
Regular price
£395.47
ex VAT£474.56inc. VAT
Regular price
Sale price
£395.47
ex VAT£474.56
inc. VAT
In stock
Price Break
10+
£351.97
20+
£332.19
30+
£328.24
40+
£324.28
50+
£320.33
75+
£316.38
100+
£296.60
200+
£292.65
250+
£288.69
500+
£284.74
1000+
£276.83
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- MST
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 9.114 inch |
| L1 | 5.492 inch |
| L2 | 0.807 inch |
| L3 | 1.26 inch |
| L4 | 4.921 inch |
| L5 | 2.913 inch |
| H | 7.244 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 6.5 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 2.126 inch |
| A2 | 1.063 inch |
| B | 3.25 inch |
| B5 | - inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| d4 | - inch |
| Dynamic load | 71500 N |
| Static load | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
