SKU: MST25-RHP
RHP MST25 Cast Iron Take Up Unit and 25mm Bore Insert
RHP MST25 Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
£79.85
ex VAT£95.82inc. VAT
Regular price
Sale price
£79.85
ex VAT£95.82
inc. VAT
In stock
Price Break
10+
£71.07
19+
£67.07
29+
£66.28
39+
£65.48
49+
£64.68
74+
£63.88
99+
£59.89
199+
£59.09
249+
£58.29
499+
£57.49
999+
£55.90
Couldn't load pickup availability
Description
Description
|

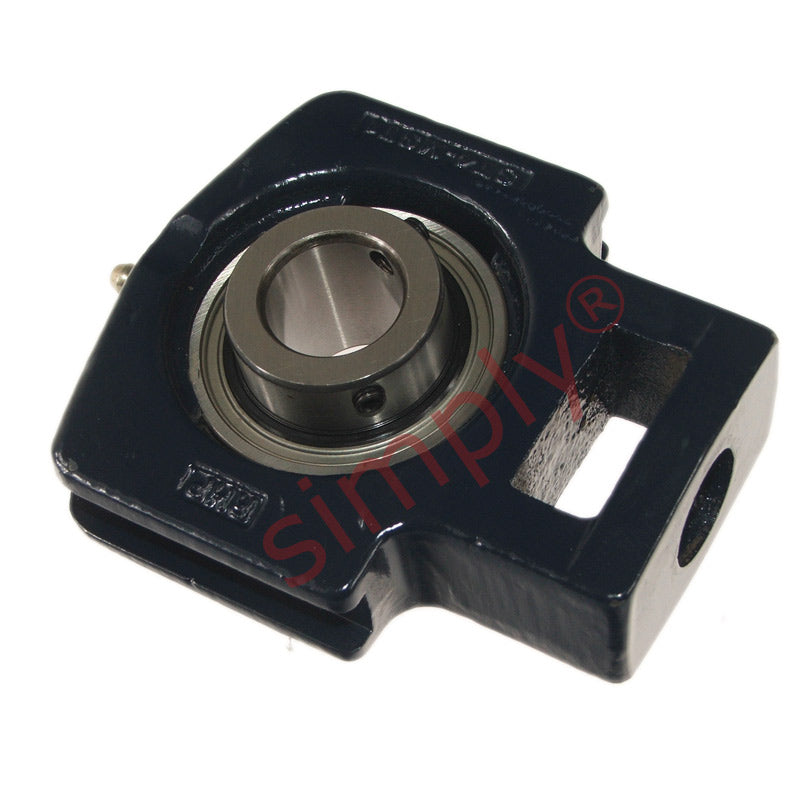

RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115.5mm |
| L1 | 71.7mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 38.1mm |
| B5 | -mm |
| s | 15.93mm |
| d1 | 40mm |
| d4 | -mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
