SKU: MST1.1/4-RHP

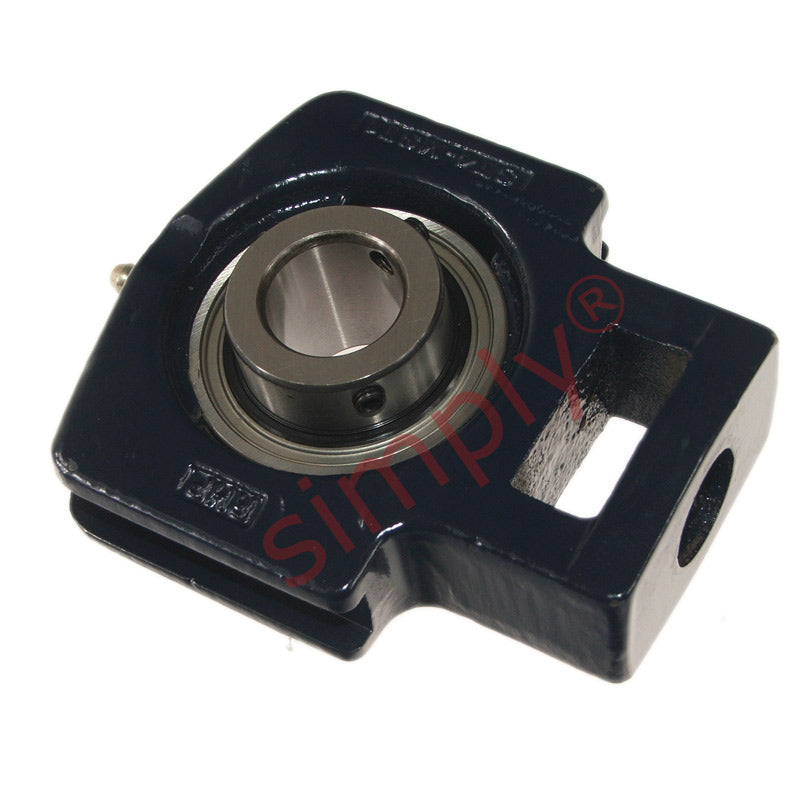

RHP MST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
RHP MST1-1/4 Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
Regular price
£69.94
ex VAT£83.93inc. VAT
Regular price
Sale price
£69.94
ex VAT£83.93
inc. VAT
In stock
Price Break
10+
£62.25
19+
£58.75
29+
£58.05
39+
£57.35
49+
£56.65
74+
£55.95
99+
£52.46
199+
£51.76
249+
£51.06
499+
£50.36
999+
£48.96
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- MST
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.547 inch |
| L1 | 2.823 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B | 1.688 inch |
| B5 | - inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| d4 | - inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
