SKU: MSFT2-RHP
RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
Regular price
£132.57
ex VAT£159.08inc. VAT
Regular price
Sale price
£132.57
ex VAT£159.08
inc. VAT
In stock
Price Break
10+
£117.99
19+
£111.36
29+
£110.03
39+
£108.71
49+
£107.38
74+
£106.06
99+
£99.43
199+
£98.10
249+
£96.78
499+
£95.45
999+
£92.80
Couldn't load pickup availability
Description
Description
|

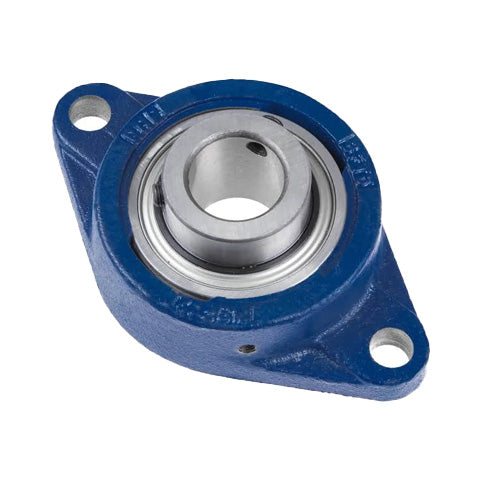

RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- MSFT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5 inch |
| H | 8.5 inch |
| J | 7.244 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A1 | 2.532 inch |
| A4 | 0.689 inch |
| B | 2.187 inch |
| s | 0.877 |
| d1 | 2.709 inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
