SKU: MSFT1040-35K-RHP

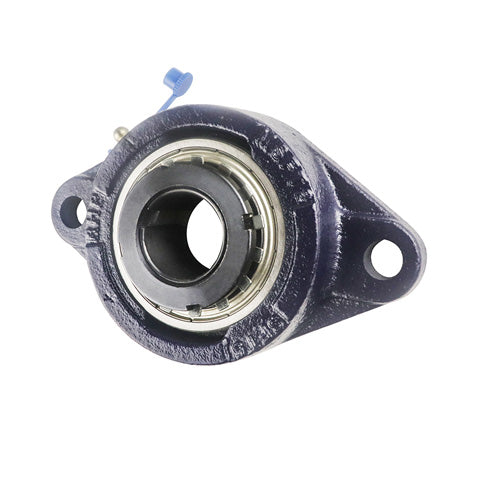

RHP MSFT1040-35K Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP MSFT1040-35K Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
£104.97
ex VAT£125.96inc. VAT
Regular price
Sale price
£104.97
ex VAT£125.96
inc. VAT
In stock
Price Break
10+
£93.43
20+
£88.18
30+
£87.13
40+
£86.08
50+
£85.03
75+
£83.98
100+
£78.73
200+
£77.68
250+
£76.63
500+
£75.58
1000+
£73.48
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- MSFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A4 | 12.7mm |
| A5 | 45mm |
| B5 | 36mm |
| s | -mm |
| d4 | 58mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040K+insonly">1040K Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
