SKU: MSFT1-RHP

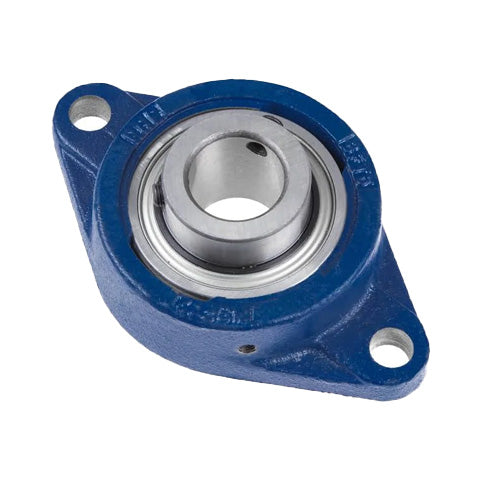

RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
£73.67
ex VAT£88.40inc. VAT
Regular price
Sale price
£73.67
ex VAT£88.40
inc. VAT
In stock
Price Break
10+
£65.57
19+
£61.88
29+
£61.15
39+
£60.41
49+
£59.67
74+
£58.94
99+
£55.25
199+
£54.52
249+
£53.78
499+
£53.04
999+
£51.57
Couldn't load pickup availability
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MSFT
- Bolt Hole Centres:
- 116.51mm = 4.587 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.252 inch |
| H | 5.563 inch |
| J | 4.587 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A1 | 1.662 inch |
| A4 | 0.5 inch |
| B | 1.5 inch |
| s | 0.627 |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
