SKU: MSC3.7/16-RHP

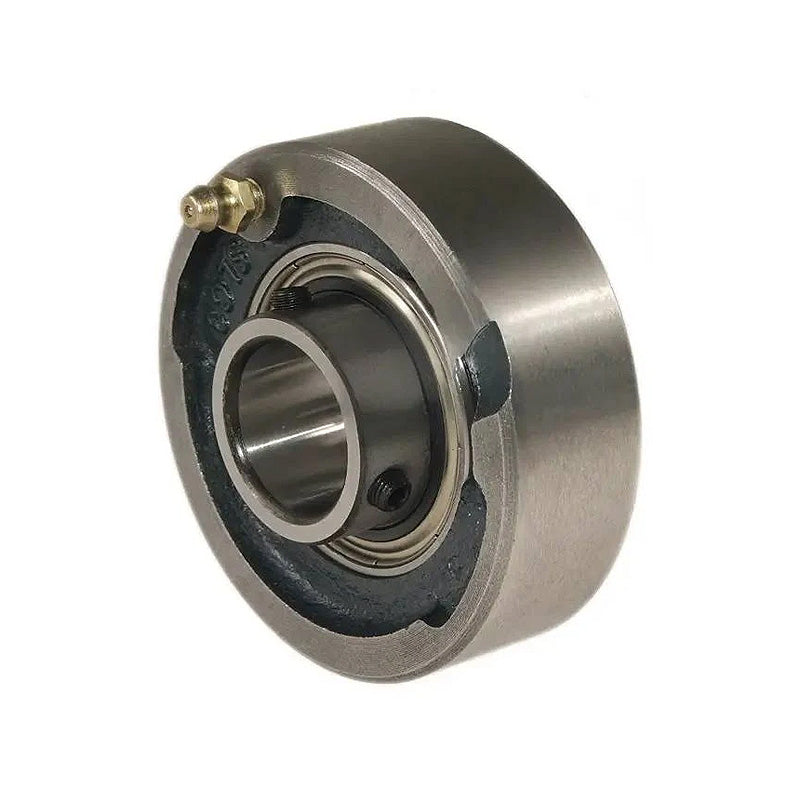

RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter
RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter
Regular price
£537.90
ex VAT£645.48inc. VAT
Regular price
Sale price
£537.90
ex VAT£645.48
inc. VAT
In stock
Price Break
10+
£478.73
19+
£451.84
29+
£446.46
39+
£441.08
49+
£435.70
74+
£430.32
99+
£403.43
199+
£398.05
249+
£392.67
499+
£387.29
999+
£376.53
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Outside Diameter:
- 207.99mm
- Style:
- MSC
Technical
Technical
| Bore | 3-7/16 inch |
|---|---|
| L | 8.1885 inch |
| A | 2.5 inch |
| A1 | 3.467 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rex max speed | 1900 rpm |
| Weight | 12.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
