SKU: MSC1-RHP

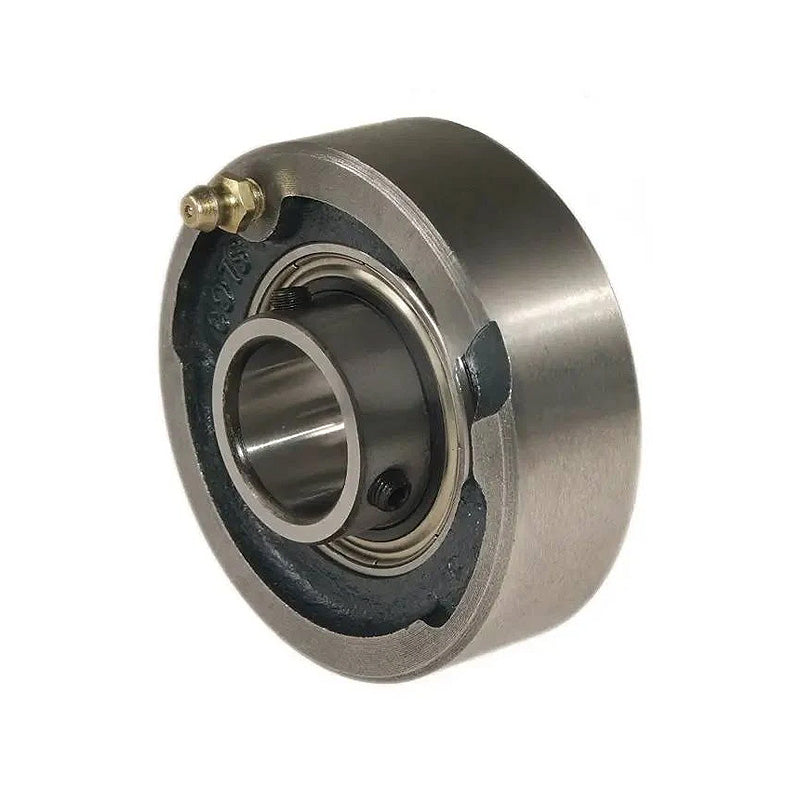

RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
RHP MSC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 88.93mm Outside Diameter
Regular price
£50.42
ex VAT£60.50inc. VAT
Regular price
Sale price
£50.42
ex VAT£60.50
inc. VAT
In stock
Price Break
10+
£44.87
20+
£42.35
30+
£41.85
40+
£41.34
50+
£40.84
75+
£40.33
100+
£37.81
200+
£37.31
250+
£36.81
500+
£36.30
1000+
£35.29
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 88.93mm
- Style:
- MSC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.501 inch |
| A | 1.094 inch |
| A1 | 1.422 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rex max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
