SKU: MSC1.7/16-RHP

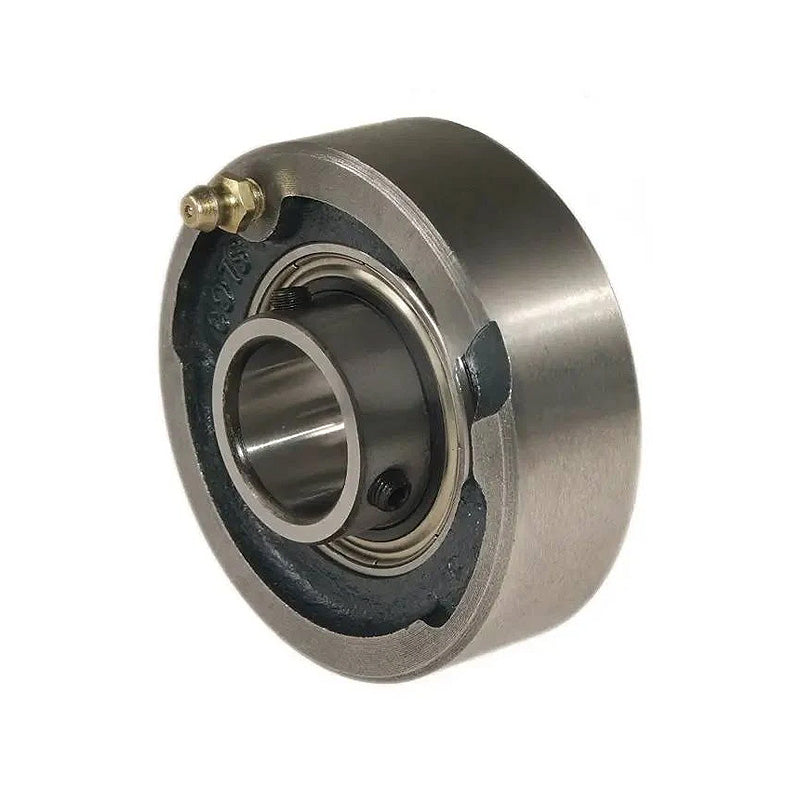

RHP MSC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 106.39mm Outside Diameter
RHP MSC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 106.39mm Outside Diameter
Regular price
£93.63
ex VAT£112.36inc. VAT
Regular price
Sale price
£93.63
ex VAT£112.36
inc. VAT
In stock
Price Break
10+
£83.33
19+
£78.65
29+
£77.71
39+
£76.78
49+
£75.84
74+
£74.90
99+
£70.22
199+
£69.29
249+
£68.35
499+
£67.41
999+
£65.54
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 106.39mm
- Style:
- MSC
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.1885 inch |
| A | 1.469 inch |
| A1 | 1.923 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rex max speed | 4000 rpm |
| Weight | 2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
