SKU: MSC1.1/4-RHP

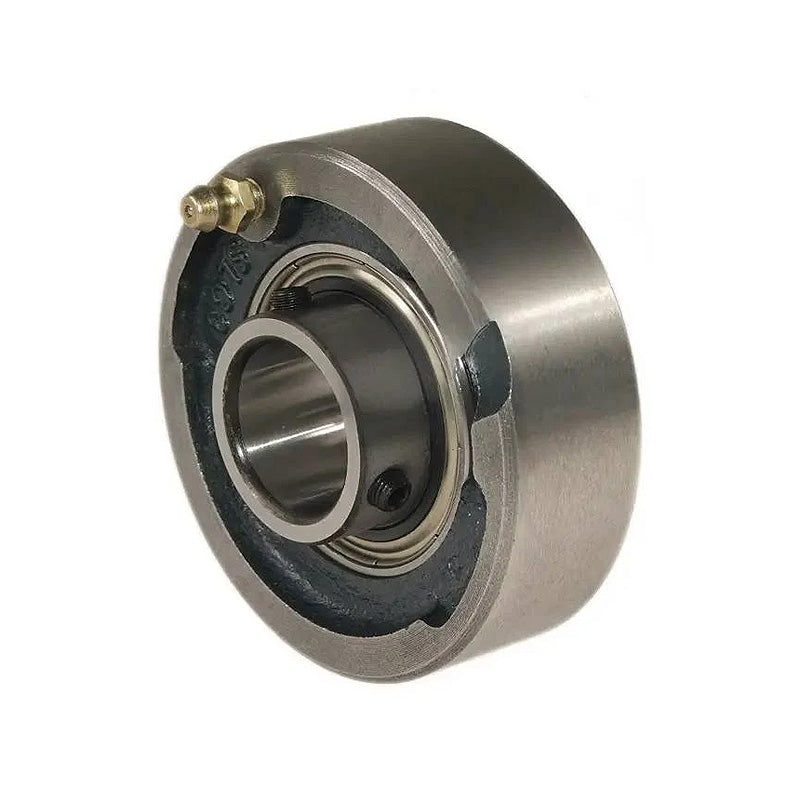

RHP MSC1-1/4 Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
RHP MSC1-1/4 Cast Iron Cartridge Unit with 1-1/4 inch Bore Insert 98.45mm Outside Diameter
Regular price
£73.67
ex VAT£88.40inc. VAT
Regular price
Sale price
£73.67
ex VAT£88.40
inc. VAT
In stock
Price Break
10+
£65.57
20+
£61.89
30+
£61.15
40+
£60.41
50+
£59.68
75+
£58.94
100+
£55.25
200+
£54.52
250+
£53.78
500+
£53.04
1000+
£51.57
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 98.45mm
- Style:
- MSC
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A1 | 1.609 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rex max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
