SKU: MR486024-NTN

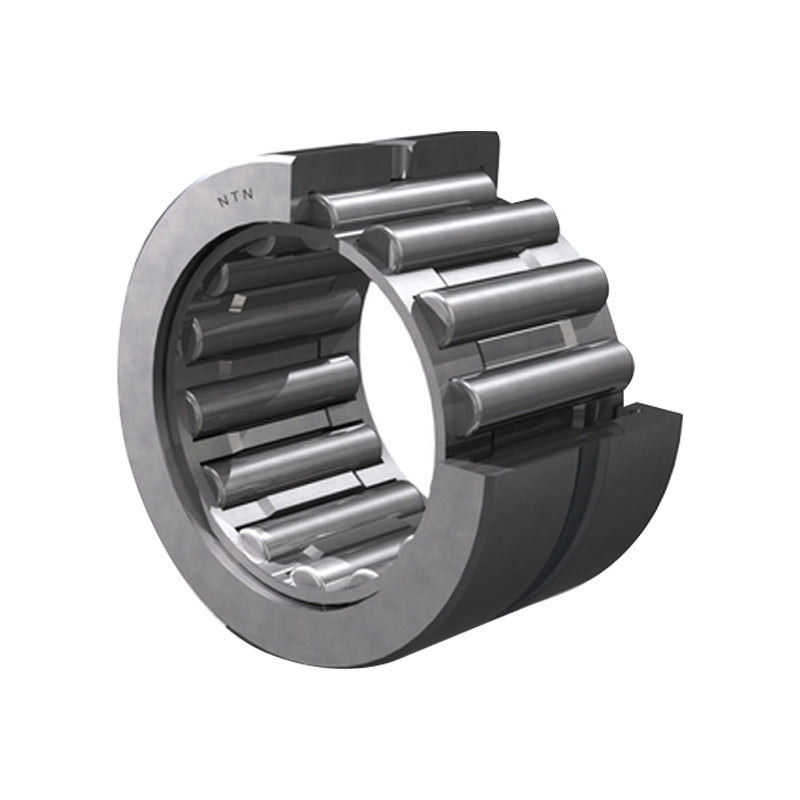

NTN MR486024 Machined Needle Roller Bearing no Shaft Sleeve 3x3-3/4x1-1/2 inch - Allow 2-3 Days

NTN MR486024 Machined Needle Roller Bearing no Shaft Sleeve 3x3-3/4x1-1/2 inch - Allow 2-3 Days
Regular price £132.90 ex VAT£159.48inc. VAT
Regular price Sale price £132.90 ex VAT£159.48 inc. VAT
Sale Sold out

In stock

Price Break
3+ £131.57
4+ £126.26
9+ £123.60
19+ £119.61
49+ £116.95
99+ £110.31
499+ £93.03
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 76.2mm
D - Outside diameter 95.25mm
C - Width of bearing, drawn cup or outer ring 38.1mm
rs - Minimum fillet radius 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 96 kN
C0r - Static load rating 188 kN
N - Grease lubrication limit speed 3300 tr/min
N - Oil lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 87mm
ras max - Maximum shaft & housing fillet radius 2mm
