SKU: MPL-M10C-MB

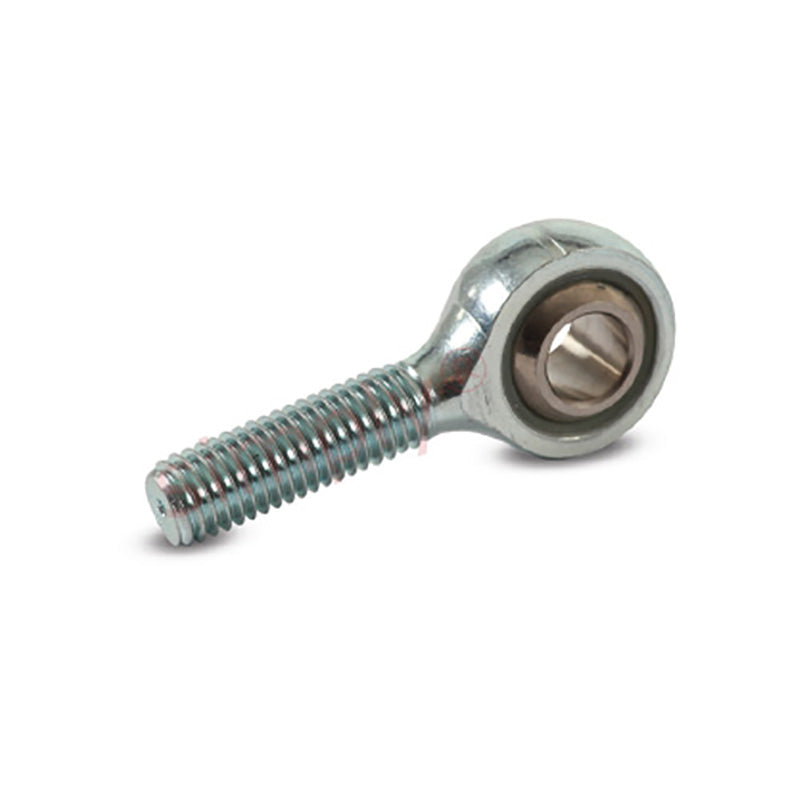

Branded MPL-M10C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.25 Thread - Allow 7-10 Days
Branded MPL-M10C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.25 Thread - Allow 7-10 Days
Regular price
£8.33
ex VAT£10.00inc. VAT
Regular price
Sale price
£8.33
ex VAT£10.00
inc. VAT
In stock
Price Break
10+
£7.41
19+
£7.00
29+
£6.91
39+
£6.83
49+
£6.75
74+
£6.66
99+
£6.25
199+
£6.16
249+
£6.08
499+
£6.00
999+
£5.83
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 10mm |
|---|---|
| Thread | M10x1.25 |
| W | 14mm |
| H | 10.5mm |
| D | 26mm |
| L1 | 48mm |
| L2 | 29mm |
| O | 12.9mm |
| Static load | 16960 N |
