SKU: MP4-RHP

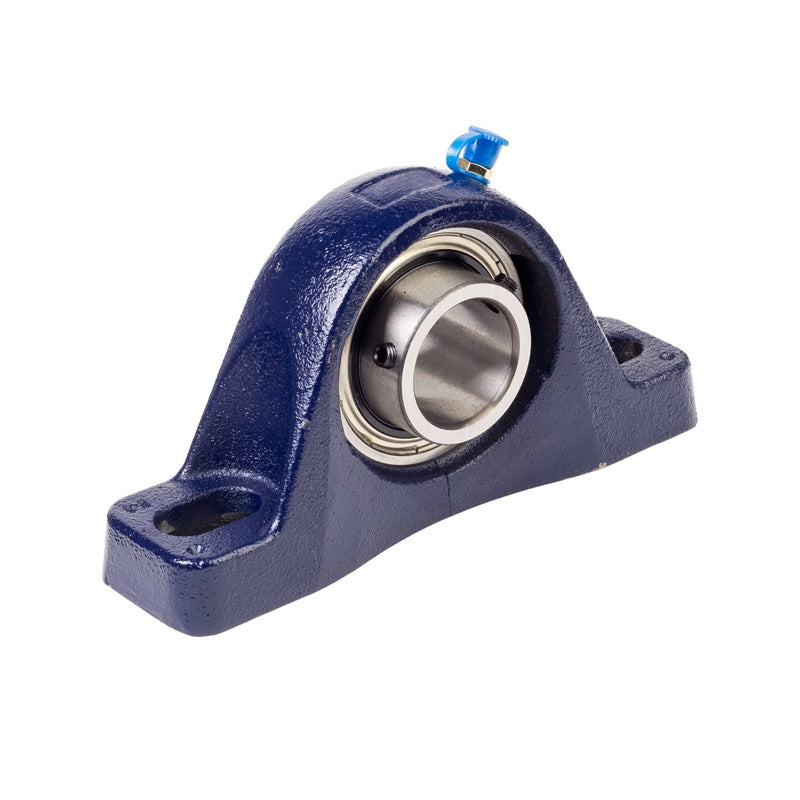

RHP MP4 Two Bolt Cast Iron Pillow Block and 4 Bore Grub Screw Insert
RHP MP4 Two Bolt Cast Iron Pillow Block and 4 Bore Grub Screw Insert
Regular price
£635.56
ex VAT£762.67inc. VAT
Regular price
Sale price
£635.56
ex VAT£762.67
inc. VAT
In stock
Price Break
10+
£565.65
20+
£533.87
30+
£527.51
40+
£521.16
50+
£514.80
75+
£508.45
100+
£476.67
200+
£470.31
250+
£463.96
500+
£457.60
1000+
£444.89
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- MP
- Bolt Hole Centres:
- 11.874-14.626 inch
Technical
Technical
| Bore | 4 inch |
|---|---|
| L | 17 inch |
| H | 5 inch |
| H1 | 1.311 inch |
| H2 | 10 inch |
| J max | 14.626 inch |
| J min | 11.874 inch |
| G | 1 inch |
| A | 4.748 inch |
| A1 | 3.874 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 34.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
