SKU: MP3.7/16-RHP

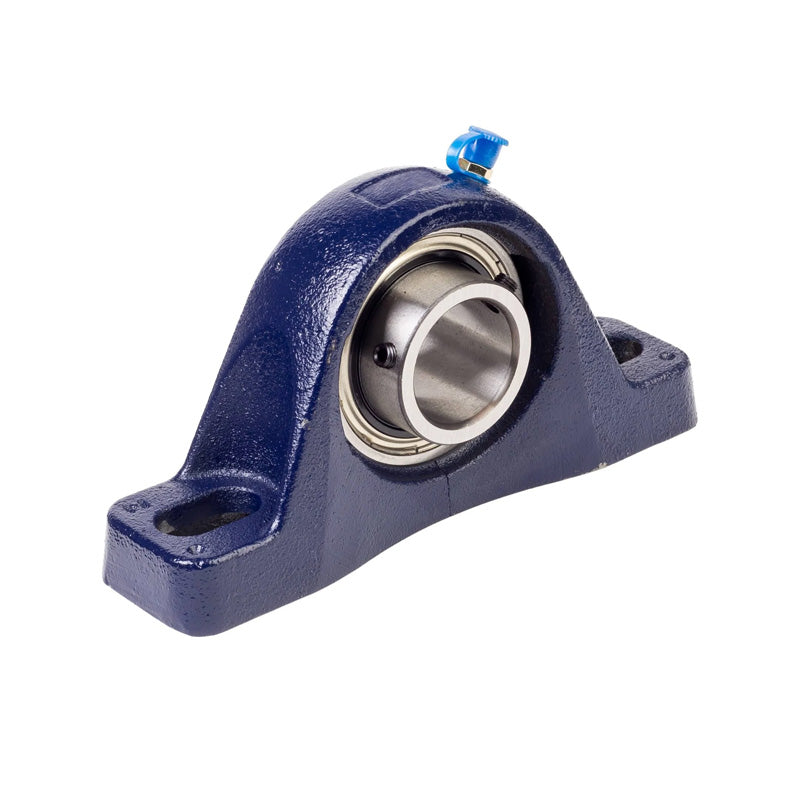

RHP MP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Insert

RHP MP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Insert
Regular price £423.78 ex VAT£508.54inc. VAT
Regular price Sale price £423.78 ex VAT£508.54 inc. VAT
Sale Sold out

In stock

Price Break
10+ £377.16
20+ £355.97
30+ £351.73
40+ £347.50
50+ £343.26
75+ £339.02
100+ £317.83
200+ £313.59
250+ £309.36
500+ £305.12
1000+ £296.64
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-7/16 inch
L 15 inch
H 4000 inch
H1 1.311 inch
H2 8.252 inch
J max 12.563 inch
J min 9.689 inch
G 1 inch
A 4.374 inch
A1 3.126 inch
B 3.781 inch
s 1.564 inch
d1 4.396 inch
Dynamic load Cr 96000 N
Static load Cor 71500 N
Rec max speed 1900 rpm
Weight 23.4 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
