• RHP MP2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Insert
1 1

SKU: MP2-RHP

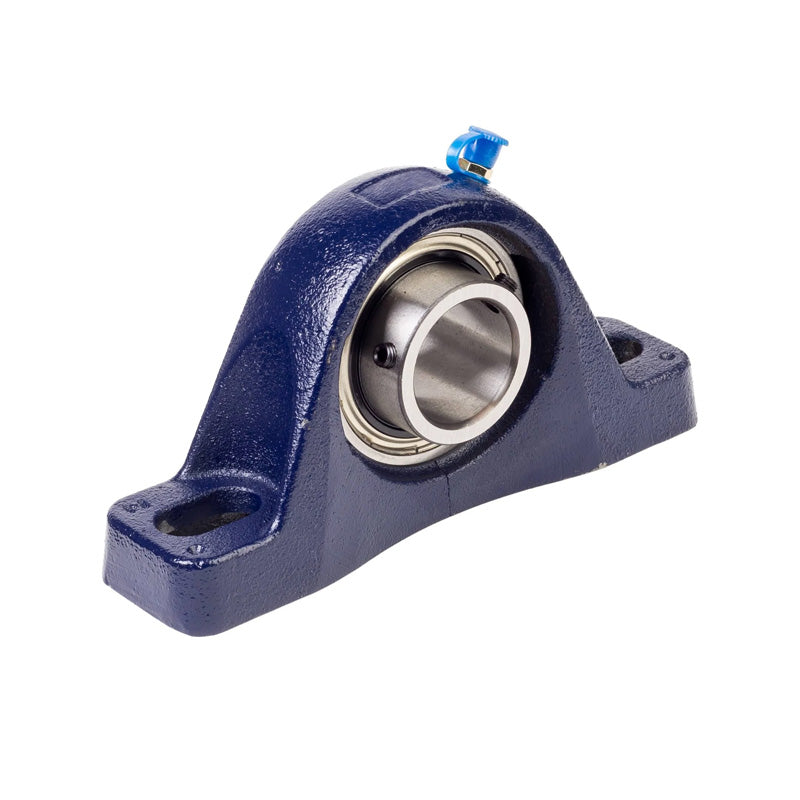

RHP MP2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Insert

RHP MP2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Insert
£109.41 ex VAT£131.29inc. VAT
£109.41 ex VAT£131.29 inc. VAT
Sale Sold out

In stock

Price Break
10+ £97.37
20+ £91.90
30+ £90.81
40+ £89.71
50+ £88.62
75+ £87.53
100+ £82.06
200+ £80.96
250+ £79.87
500+ £78.77
1000+ £76.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, insert extends to front and back
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
MP
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2 inch
L 8.641 inch
H 2.5 inch
H1 0.976 inch
H2 5.098 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
