SKU: MP1.3/16-RHP

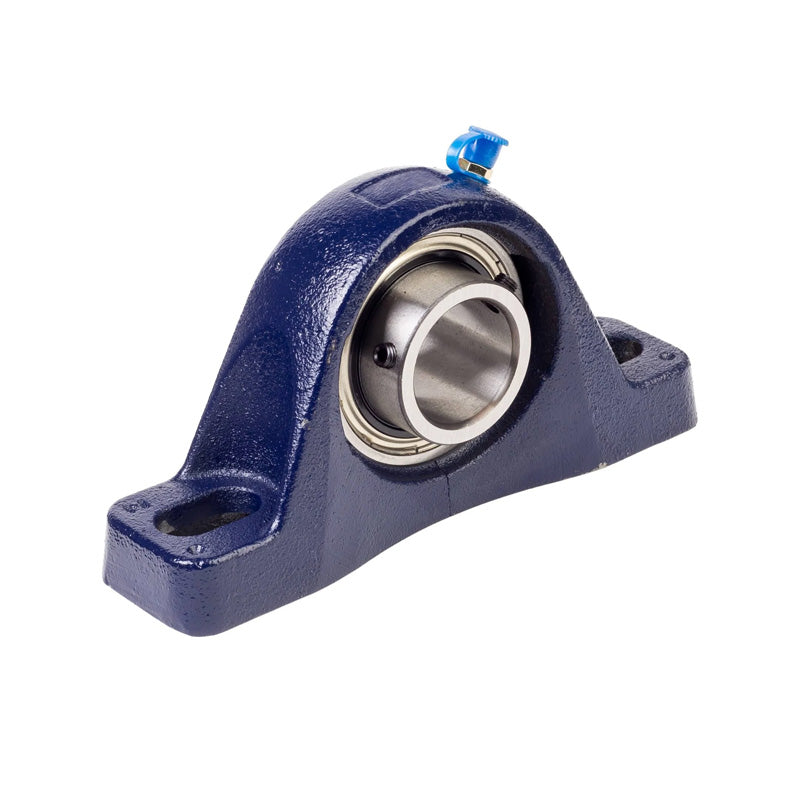

RHP MP1-3/16 Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Grub Screw Insert

RHP MP1-3/16 Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Grub Screw Insert
Regular price £60.79 ex VAT£72.95inc. VAT
Regular price Sale price £60.79 ex VAT£72.95 inc. VAT
Sale Sold out

In stock

Price Break
10+ £54.10
20+ £51.06
30+ £50.45
40+ £49.85
50+ £49.24
75+ £48.63
100+ £45.59
200+ £44.98
250+ £44.38
500+ £43.77
1000+ £42.55
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/16 inch
L 6.535 inch
H 1.874 inch
H1 0.689 inch
H2 3.661 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
