SKU: MP-M25-MB

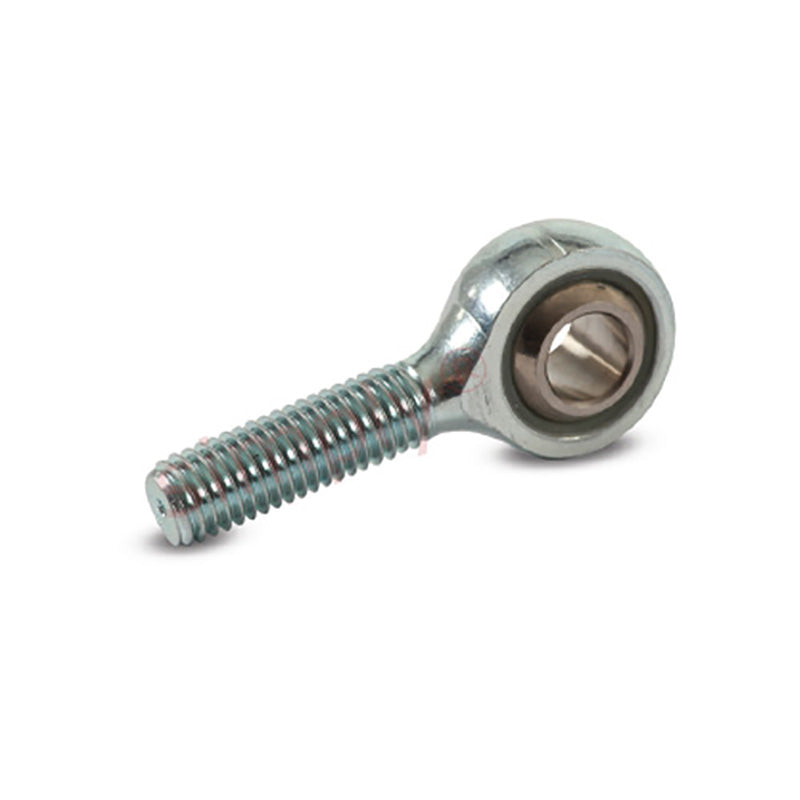

Branded MP-M25 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M24x2 Thread
Branded MP-M25 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M24x2 Thread
Regular price
£58.30
ex VAT£69.96inc. VAT
Regular price
Sale price
£58.30
ex VAT£69.96
inc. VAT
In stock
Price Break
10+
£51.88
19+
£48.97
29+
£48.39
39+
£47.80
49+
£47.22
74+
£46.64
99+
£43.72
199+
£43.14
249+
£42.56
499+
£41.97
999+
£40.81
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 25mm |
|---|---|
| Thread | M24x2 |
| W | 31mm |
| H | 22mm |
| D | 60mm |
| L1 | 94mm |
| L2 | 57mm |
| O | 29.6mm |
| Static load | 67140 N |
