SKU: MP-M12-10-MB

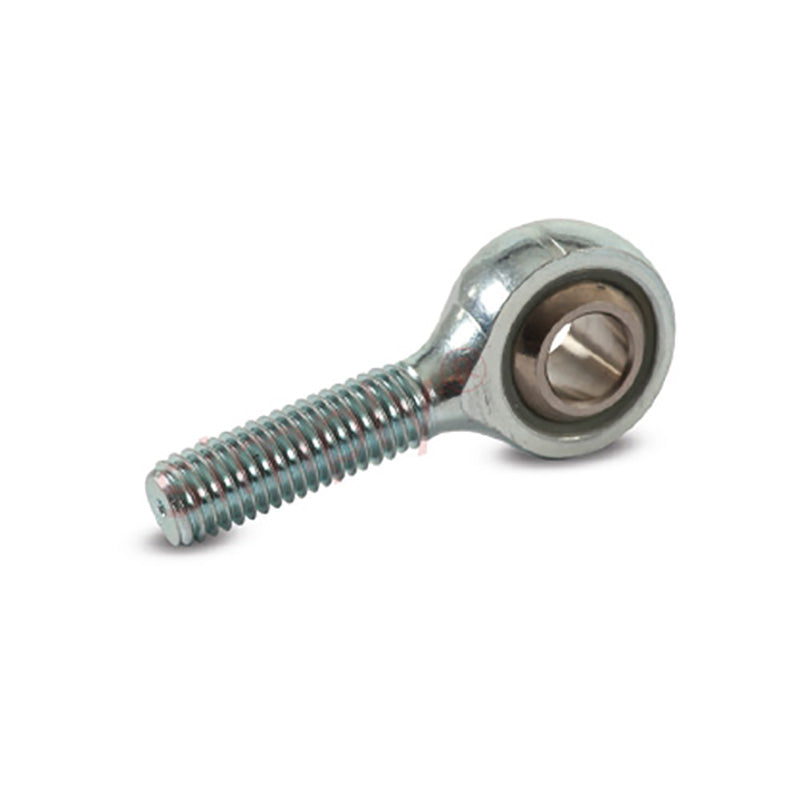

Branded MP-M12-10 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.75 Thread
Branded MP-M12-10 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M12x1.75 Thread
Regular price
£23.99
ex VAT£28.79inc. VAT
Regular price
Sale price
£23.99
ex VAT£28.79
inc. VAT
In stock
Price Break
10+
£21.35
19+
£20.15
29+
£19.91
39+
£19.67
49+
£19.43
74+
£19.19
99+
£17.99
199+
£17.75
249+
£17.51
499+
£17.27
999+
£16.79
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 10mm |
|---|---|
| Thread | M12x1.75 |
| W | 16mm |
| H | 12mm |
| D | 30mm |
| L1 | 54mm |
| L2 | 33mm |
| O | 15.4mm |
| Static load | 22900 N |
