SKU: MP-M10-8-MB

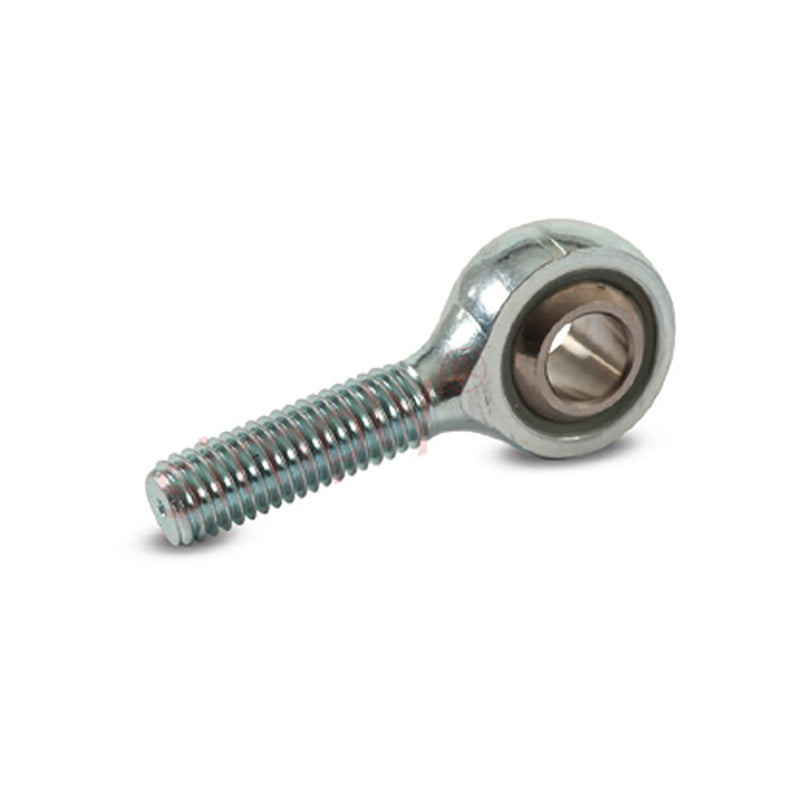

Branded MP-M10-8 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.5 Thread
Branded MP-M10-8 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.5 Thread
Regular price
£13.20
ex VAT£15.84inc. VAT
Regular price
Sale price
£13.20
ex VAT£15.84
inc. VAT
In stock
Price Break
10+
£11.75
19+
£11.09
29+
£10.96
39+
£10.82
49+
£10.69
74+
£10.56
99+
£9.90
199+
£9.77
249+
£9.64
499+
£9.50
999+
£9.24
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M10x1.5 |
| W | 14mm |
| H | 10.5mm |
| D | 26mm |
| L1 | 48mm |
| L2 | 29mm |
| O | 12.9mm |
| Static load | 16960 N |
