SKU: MP-M08S-MB

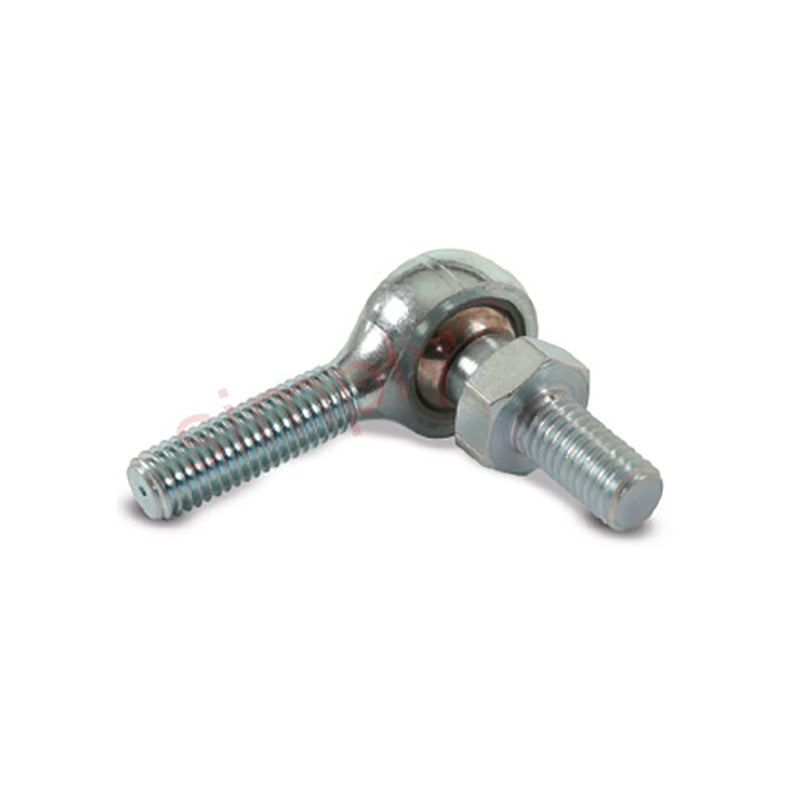

Branded MP-M08S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread

Name: Branded MP-M08S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M8x1.25 Thread
Brand: Major Brand
SKU: MP-M08S-MB
Price: 11.48 GBP
Availability: InStock

£11.48 ex VAT£13.78inc. VAT

£11.48 ex VAT£13.78 inc. VAT

Sale Sold out

In stock

Price Break

10+ £10.22

19+ £9.64

29+ £9.53

39+ £9.41

49+ £9.30

74+ £9.18

99+ £8.61

199+ £8.49

249+ £8.38

499+ £8.27

999+ £8.04

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Brand / Quality:: Major Brand - High Quality
Thread Size:: M8x1.25
Thread M / F:: Male
Thread Direction:: Right Hand
Material:: Nylon Lined

Technical

Stud size	M8
Thread	M8x1.25
A	16mm
B	16mm
C	14mm
K	13mm
Static load	3190 N
