SKU: MP-M08C-MB

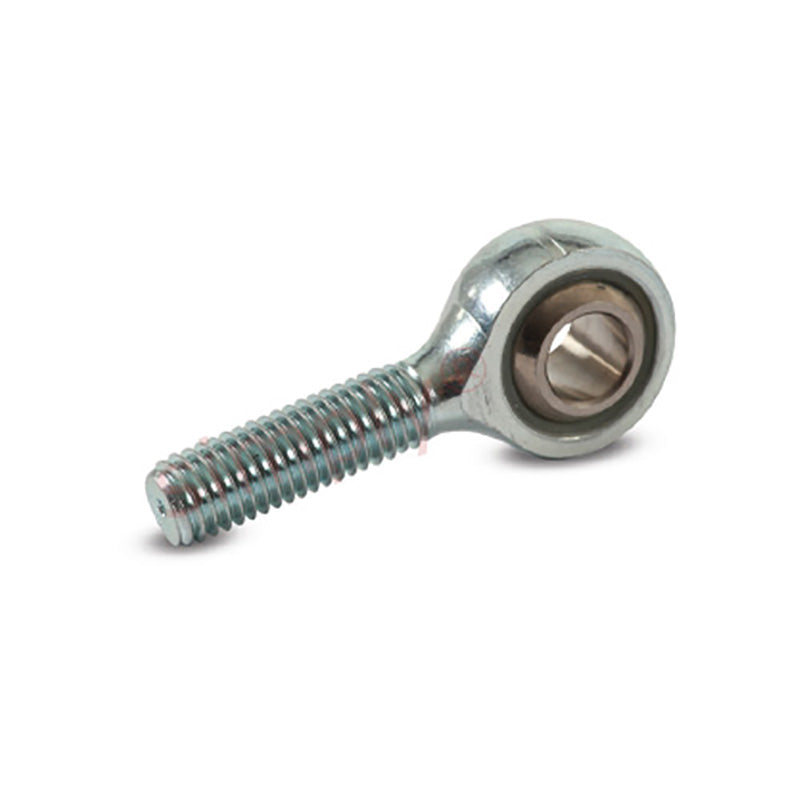

Branded MP-M08C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1 Thread
Branded MP-M08C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1 Thread
Regular price
£6.88
ex VAT£8.26inc. VAT
Regular price
Sale price
£6.88
ex VAT£8.26
inc. VAT
In stock
Price Break
10+
£6.12
19+
£5.78
29+
£5.71
39+
£5.64
49+
£5.57
74+
£5.50
99+
£5.16
199+
£5.09
249+
£5.02
499+
£4.95
999+
£4.82
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M8x1 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 42mm |
| L2 | 25mm |
| O | 10.4mm |
| Static load | 12775 N |
