SKU: MP-M08-MB

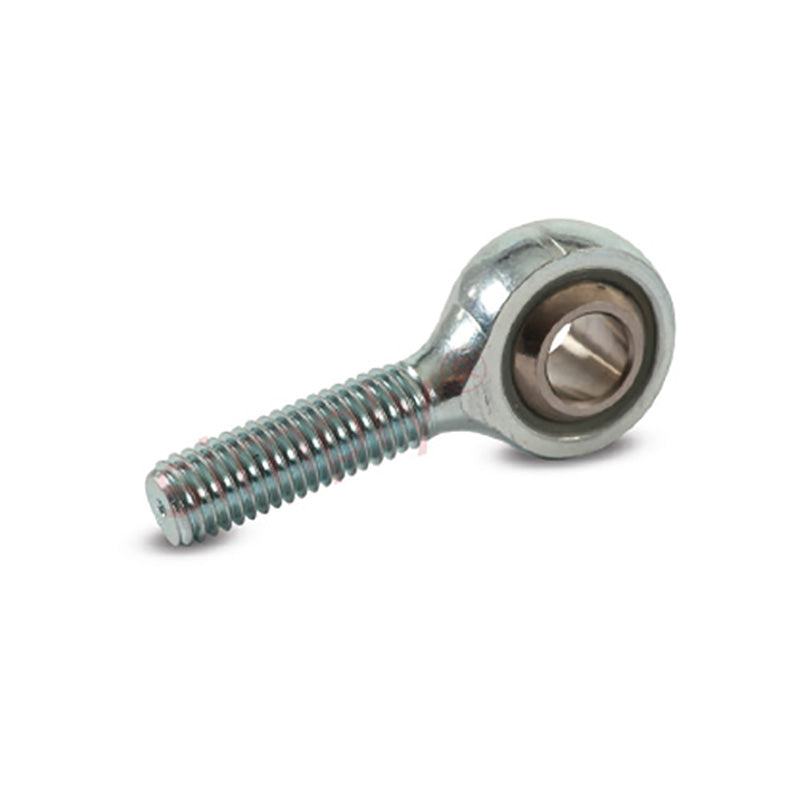

Branded MP-M08 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
Branded MP-M08 Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
Regular price
£8.55
ex VAT£10.26inc. VAT
Regular price
Sale price
£8.55
ex VAT£10.26
inc. VAT
In stock
Price Break
10+
£7.61
19+
£7.18
29+
£7.10
39+
£7.01
49+
£6.93
74+
£6.84
99+
£6.41
199+
£6.33
249+
£6.24
499+
£6.16
999+
£5.99
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M8x1.25 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 42mm |
| L2 | 25mm |
| O | 10.4mm |
| Static load | 12775 N |
