SKU: MP-08-7F-MB

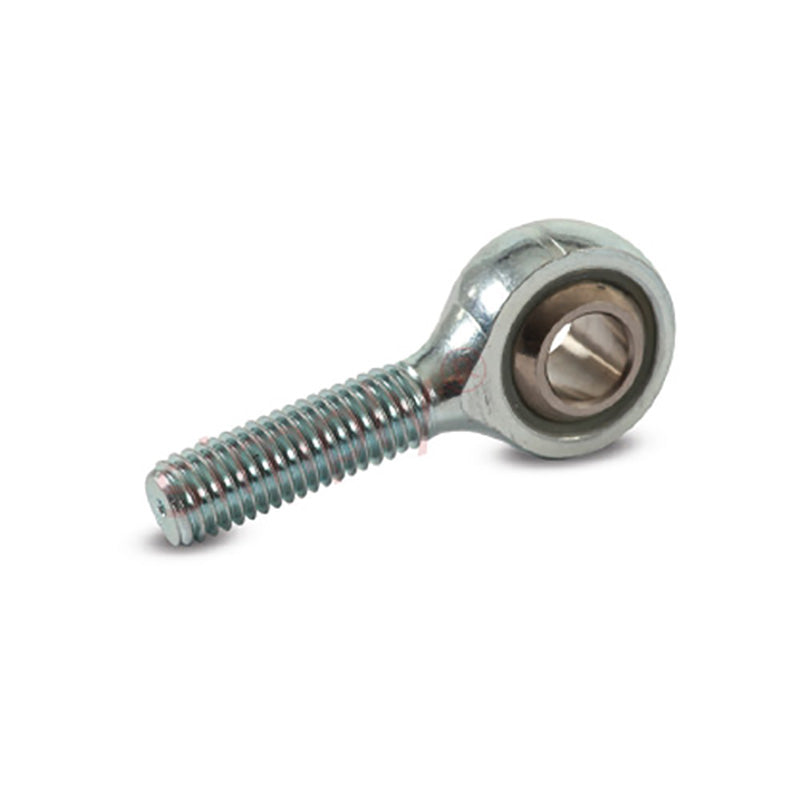

Branded MP-08-7F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread
Branded MP-08-7F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread
Regular price
£44.48
ex VAT£53.38inc. VAT
Regular price
Sale price
£44.48
ex VAT£53.38
inc. VAT
In stock
Price Break
10+
£39.59
19+
£37.36
29+
£36.92
39+
£36.47
49+
£36.03
74+
£35.58
99+
£33.36
199+
£32.91
249+
£32.47
499+
£32.02
999+
£31.13
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/2 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 7/16 inch |
|---|---|
| Thread | 1/2 BSF |
| W | 0.652 inch |
| H | 0.5 inch |
| D | 1.312 inch |
| L1 | 2.438 inch |
| L2 | 1.5 inch |
| O | 0.7 inch |
| Static load | 28900 N |
