SKU: MP-07F-MB

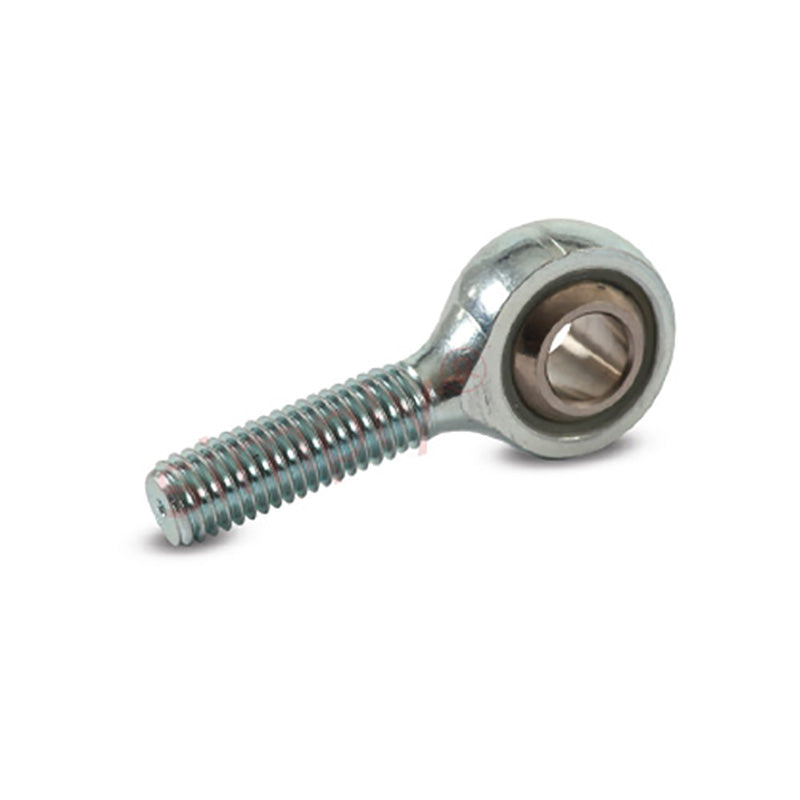

Branded MP-07F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 7/16 BSF Thread - Allow 7-10 Days
Branded MP-07F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 7/16 BSF Thread - Allow 7-10 Days
Regular price
£19.31
ex VAT£23.17inc. VAT
Regular price
Sale price
£19.31
ex VAT£23.17
inc. VAT
In stock
Price Break
10+
£17.19
19+
£16.22
29+
£16.03
39+
£15.84
49+
£15.64
74+
£15.45
99+
£14.48
199+
£14.29
249+
£14.10
499+
£13.90
999+
£13.52
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 7/16 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 7/16 inch |
|---|---|
| Thread | 7/16 BSF |
| W | 0.562 inch |
| H | 0.437 inch |
| D | 1.125 inch |
| L1 | 2.125 inch |
| L2 | 1.375 inch |
| O | 0.586 inch |
| Static load | 19750 N |
