SKU: MP-04F-MB

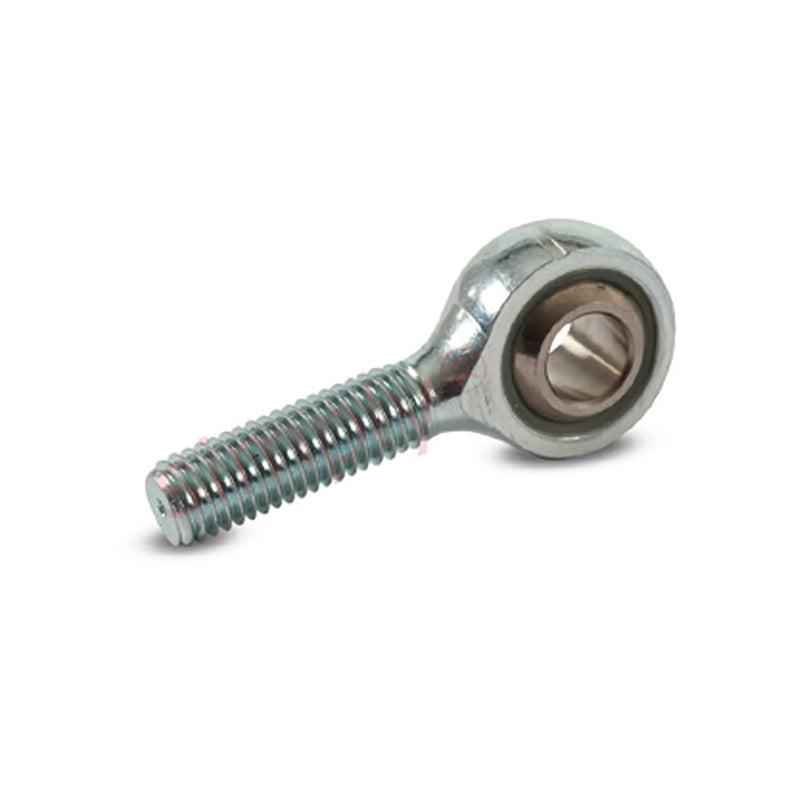

Branded MP-04F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 BSF Thread
Branded MP-04F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 BSF Thread
Regular price
£13.79
ex VAT£16.55inc. VAT
Regular price
Sale price
£13.79
ex VAT£16.55
inc. VAT
In stock
Price Break
10+
£12.28
19+
£11.59
29+
£11.45
39+
£11.31
49+
£11.17
74+
£11.04
99+
£10.35
199+
£10.21
249+
£10.07
499+
£9.93
999+
£9.66
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/4 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 1/4 inch |
|---|---|
| Thread | 1/4 BSF |
| W | 0.375 inch |
| H | 0.281 inch |
| D | 0.75 inch |
| L1 | 1.562 inch |
| L2 | 1 inch |
| O | 0.354 inch |
| Static load | 8450 N |
