SKU: MP-04-MB

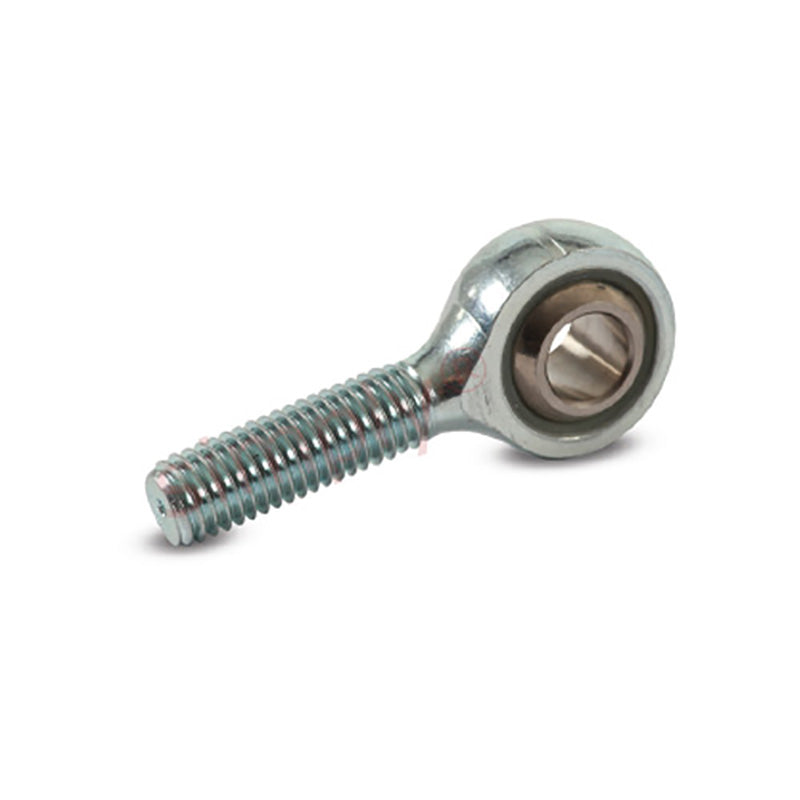

Branded MP-04 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 UNF Thread - Allow 7-10 Days
Branded MP-04 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 UNF Thread - Allow 7-10 Days
Regular price
£8.59
ex VAT£10.31inc. VAT
Regular price
Sale price
£8.59
ex VAT£10.31
inc. VAT
In stock
Price Break
10+
£7.65
19+
£7.22
29+
£7.13
39+
£7.04
49+
£6.96
74+
£6.87
99+
£6.44
199+
£6.36
249+
£6.27
499+
£6.18
999+
£6.01
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 1/4 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 1/4 inch |
|---|---|
| Thread | 1/4 UNF |
| W | 0.375 inch |
| H | 0.281 inch |
| D | 0.75 inch |
| L1 | 1.562 inch |
| L2 | 1 inch |
| O | 0.354 inch |
| Static load | 8450 N |
