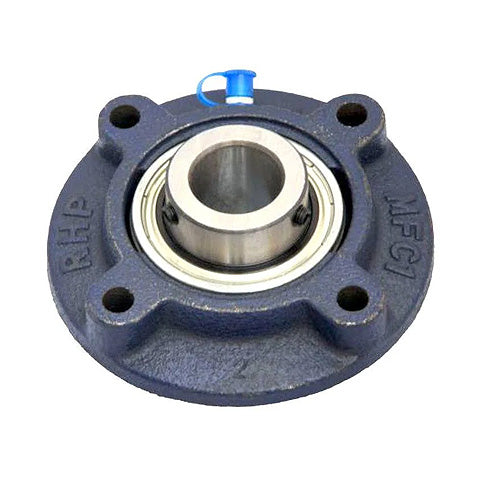

RHP MFC95 Four Bolt Round Cast Iron Flanged Bearing Unit and 95mm Insert
RHP MFC95 Four Bolt Round Cast Iron Flanged Bearing Unit and 95mm Insert
Regular price
£771.82
ex VAT£926.18inc. VAT
Regular price
Sale price
£771.82
ex VAT£926.18
inc. VAT
In stock
Price Break
10+
£686.92
20+
£648.33
30+
£640.61
40+
£632.90
50+
£625.18
75+
£617.46
100+
£578.87
200+
£571.15
250+
£563.43
500+
£555.71
1000+
£540.28
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 95mm
- Style:
- MFC
- Pitch Circle Diameter:
- 260.35mm
Technical
Technical
| Bore | 95mm |
|---|---|
| L | 298.4mm |
| H | 228.6mm |
| J | 260.35mm |
| G | 20mm |
| A1 | 88.9mm |
| A4 | 46mm |
| A5 | 12.7mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43mm |
| Dynamic load | 157000 N |
| Static load | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 17.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-95G+insonly">3095-95G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
