SKU: MFC35-RHP

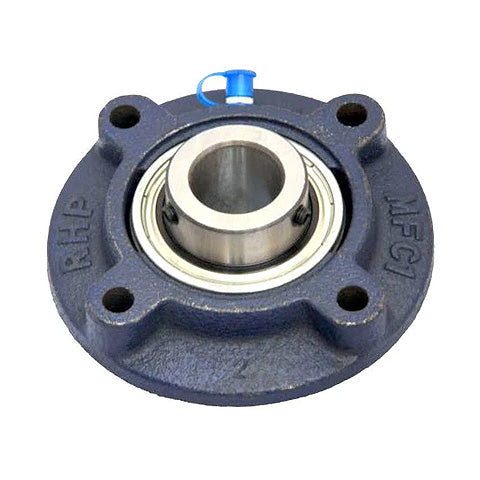

RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
£90.66
ex VAT£108.79inc. VAT
Regular price
Sale price
£90.66
ex VAT£108.79
inc. VAT
In stock
Price Break
10+
£80.69
20+
£76.15
30+
£75.25
40+
£74.34
50+
£73.44
75+
£72.53
100+
£68.00
200+
£67.09
250+
£66.18
500+
£65.28
1000+
£63.46
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- MFC
- Pitch Circle Diameter:
- 111.12mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 133.4mm |
| H | 92.07mm |
| J | 111.12mm |
| G | 10mm |
| A1 | 38.1mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
