SKU: MFC30-RHP

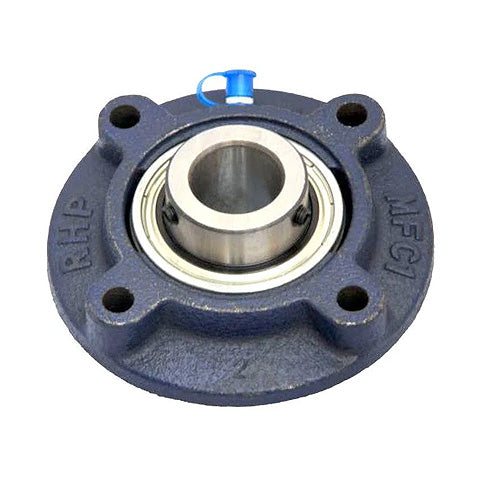

RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
£81.18
ex VAT£97.42inc. VAT
Regular price
Sale price
£81.18
ex VAT£97.42
inc. VAT
In stock
Price Break
10+
£72.25
20+
£68.19
30+
£67.38
40+
£66.57
50+
£65.76
75+
£64.94
100+
£60.89
200+
£60.07
250+
£59.26
500+
£58.45
1000+
£56.83
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- MFC
- Pitch Circle Diameter:
- 104.78mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 127mm |
| H | 85.72mm |
| J | 104.78mm |
| G | 10mm |
| A1 | 33.32mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
