SKU: MFC1.1/4R-RHP

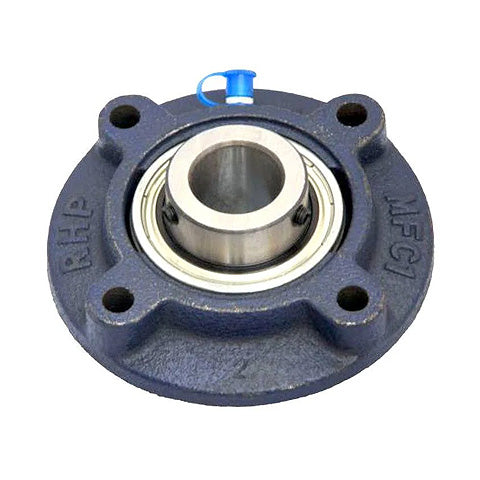

RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
Regular price
£78.01
ex VAT£93.61inc. VAT
Regular price
Sale price
£78.01
ex VAT£93.61
inc. VAT
In stock
Price Break
10+
£69.43
19+
£65.53
29+
£64.75
39+
£63.97
49+
£63.19
74+
£62.41
99+
£58.51
199+
£57.73
249+
£56.95
499+
£56.17
999+
£54.61
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 92.08mm = 3.625 (3-5/8) inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.374 inch |
| H | 3 inch |
| J | 3.625 inch |
| G | 0.3125 inch |
| A1 | 1.312 inch |
| A4 | 0.827 inch |
| A5 | 0.252 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
