SKU: M10X1-KF

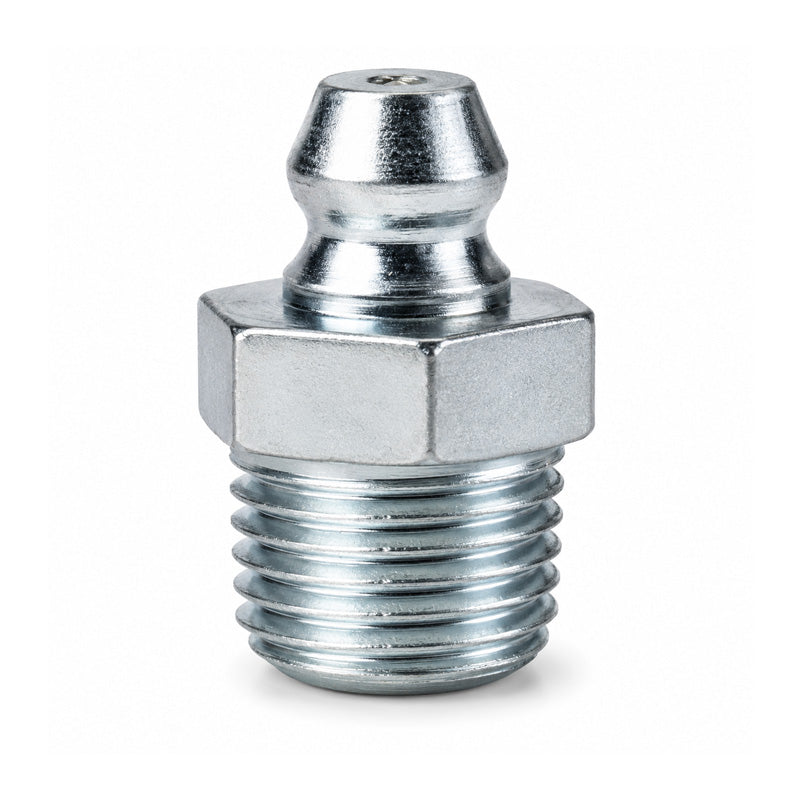

M10x1 Metric DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings
M10x1 Metric DIN 16mm Hardened Mild Steel Zinc Plated White Straight Button Head Grease Fittings
Regular price
£288.24
ex VAT£345.89inc. VAT
Regular price
Sale price
£288.24
ex VAT£345.89
inc. VAT
In stock
Price Break
5+
£285.36
10+
£273.83
20+
£268.06
50+
£259.42
100+
£253.65
500+
£239.24
1000+
£201.77
Couldn't load pickup availability
Description
Description
Button Head Grease Fittings: Kingfisher superior button head fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. Amongst our range of button head fittings there are fittings of different sizes and also thread types.
Benefits: Corrosion resistance, large range available, cost effective.
Benefits: Corrosion resistance, large range available, cost effective.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- Metric M10x1
- Thread Length:
- 6mm
- Length:
- 16.9mm
- Angle:
- Straight
Technical
Technical
| --- | Metric Thread |
|---|---|
| Recommended To Fit | Metric M10x1 |
| Total Length A | 16.9mm = 0.66 inch |
| Thread Length B | 6mm = 0.23 inch |
| Nipple Angle | Straight |
| Required Tool Size (Hex Size) | 17mm |
| Colour | White |
| Weight | 0.018 kg |
