SKU: M-UELP210D1-NTN

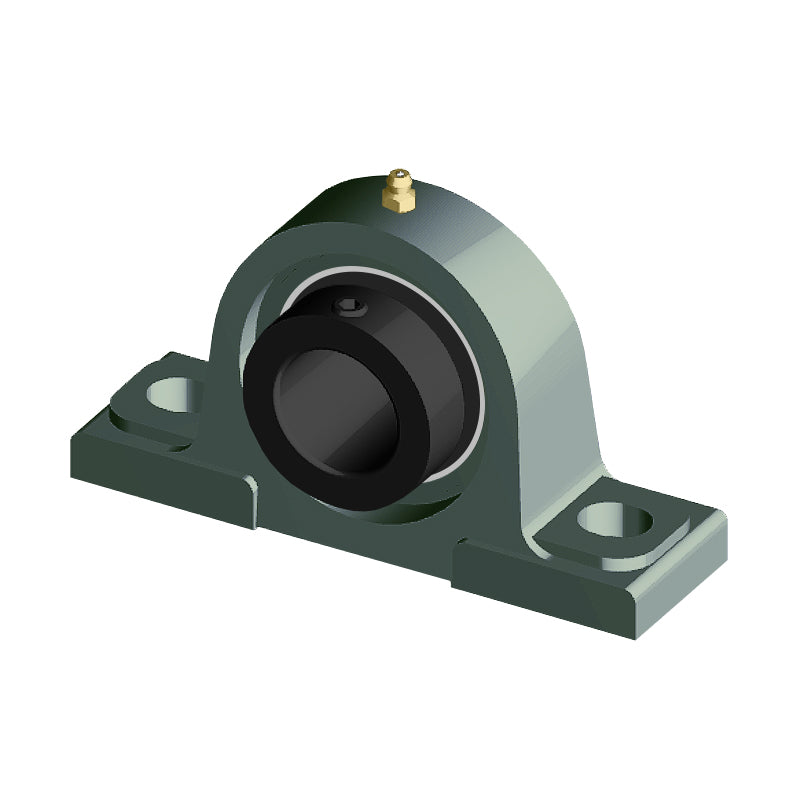

NTN M-UELP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP210D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£66.45
ex VAT£79.74inc. VAT
Regular price
Sale price
£66.45
ex VAT£79.74
inc. VAT
Allow 2-3 Days
In stock
Price Break
5+
£65.79
10+
£63.13
20+
£61.80
50+
£59.81
100+
£58.48
500+
£55.15
1000+
£46.52
Couldn't load pickup availability
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 159mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 57.2mm |
| L | 206mm |
| J | 159mm |
| A | 60mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 21mm |
| H<sub>2</sub> | 114mm |
| L<sub>1</sub> | 65mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 2.9 kg |
