SKU: M-UELF210D1-NTN

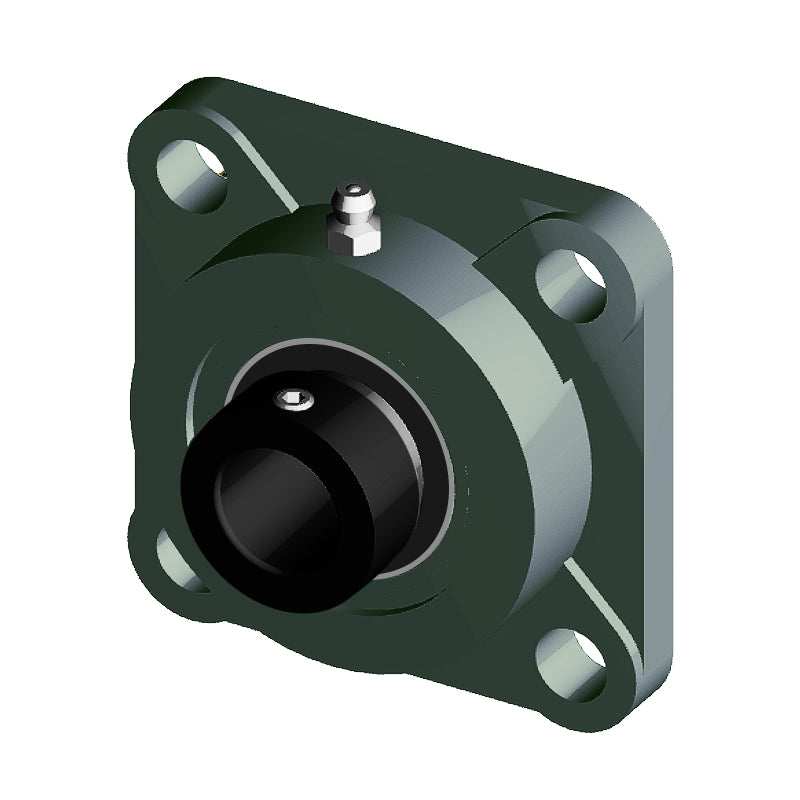

NTN M-UELF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£57.58
ex VAT£69.10inc. VAT
Regular price
Sale price
£57.58
ex VAT£69.10
inc. VAT
In stock
Price Break
10+
£51.25
19+
£48.37
29+
£47.79
39+
£47.22
49+
£46.64
74+
£46.06
99+
£43.19
199+
£42.61
249+
£42.03
499+
£41.46
999+
£40.31
Couldn't load pickup availability
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 143mm |
| J | 111mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| A<sub>0</sub> | 60.1mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| F min. | 67mm |
| Fixing bolt | M14 |
| Mass | 2.7 kg |
