SKU: M-UCHB208D1-NTN

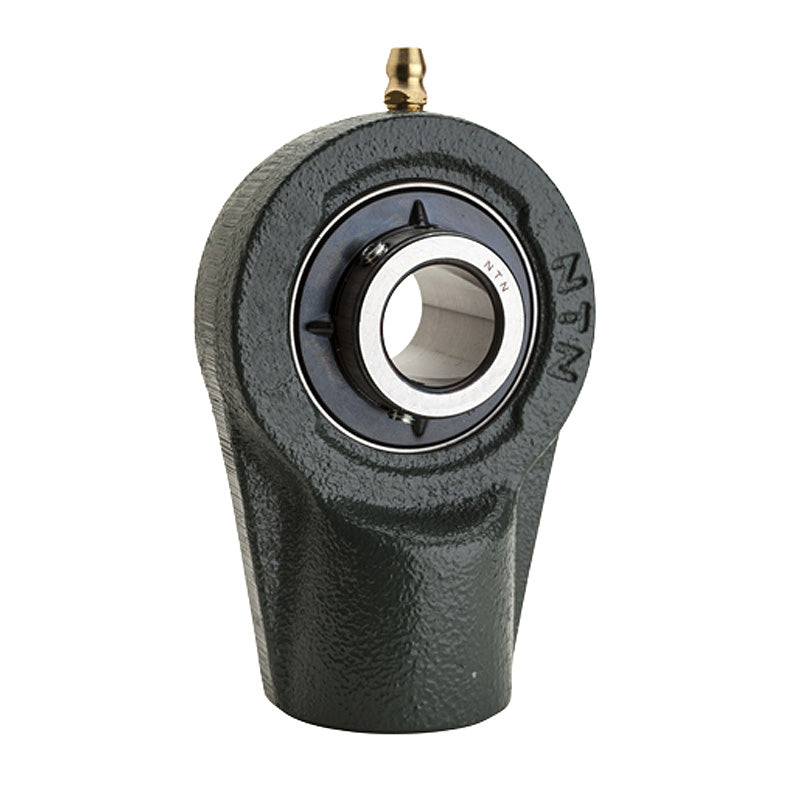

NTN M-UCHB208D1 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCHB208D1 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price
£66.42
ex VAT£79.70inc. VAT
Regular price
Sale price
£66.42
ex VAT£79.70
inc. VAT
In stock
Price Break
5+
£65.76
10+
£63.10
20+
£61.77
50+
£59.78
100+
£58.45
500+
£55.13
1000+
£46.49
Couldn't load pickup availability
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 96mm |
| H<sub>1</sub> | 121mm |
| c | 2mm |
| A | 33mm |
| H | 73mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 49.2mm |
| S | 19mm |
| Mass | 1.3 kg |
