SKU: M-UCFL209D1-NTN

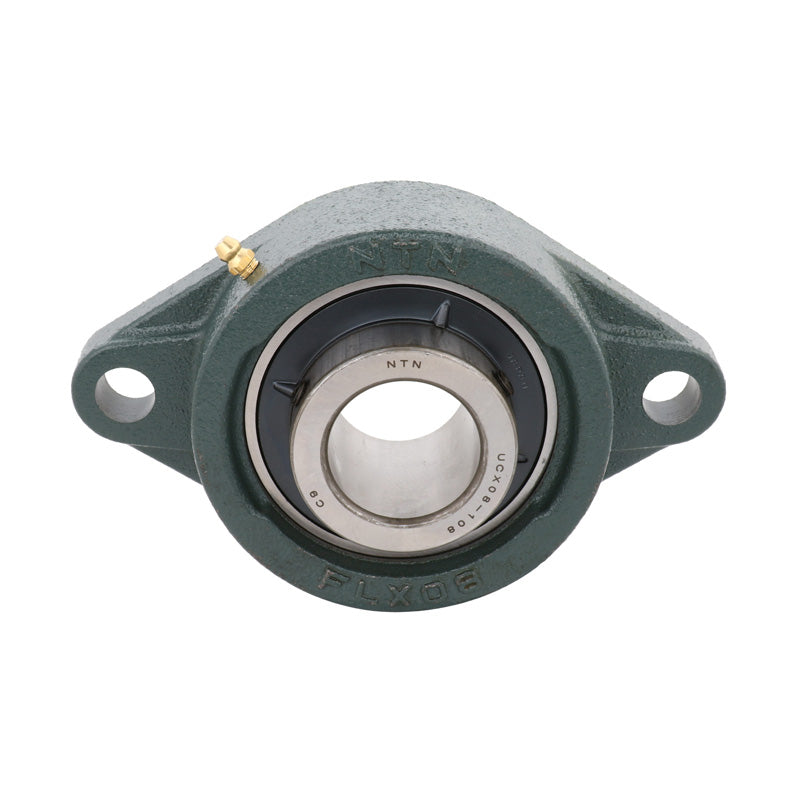

NTN M-UCFL209D1 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
NTN M-UCFL209D1 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
£39.83
ex VAT£47.80inc. VAT
Regular price
Sale price
£39.83
ex VAT£47.80
inc. VAT
In stock
Price Break
3+
£35.45
4+
£33.46
9+
£33.06
19+
£32.66
49+
£32.26
99+
£31.86
499+
£29.87
999+
£29.47
1999+
£29.08
2999+
£28.68
4999+
£27.88
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| H | 188mm |
| J | 148mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 38mm |
| N | 19mm |
| L | 108mm |
| A<sub>0</sub> | 52.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 1.8 kg |
