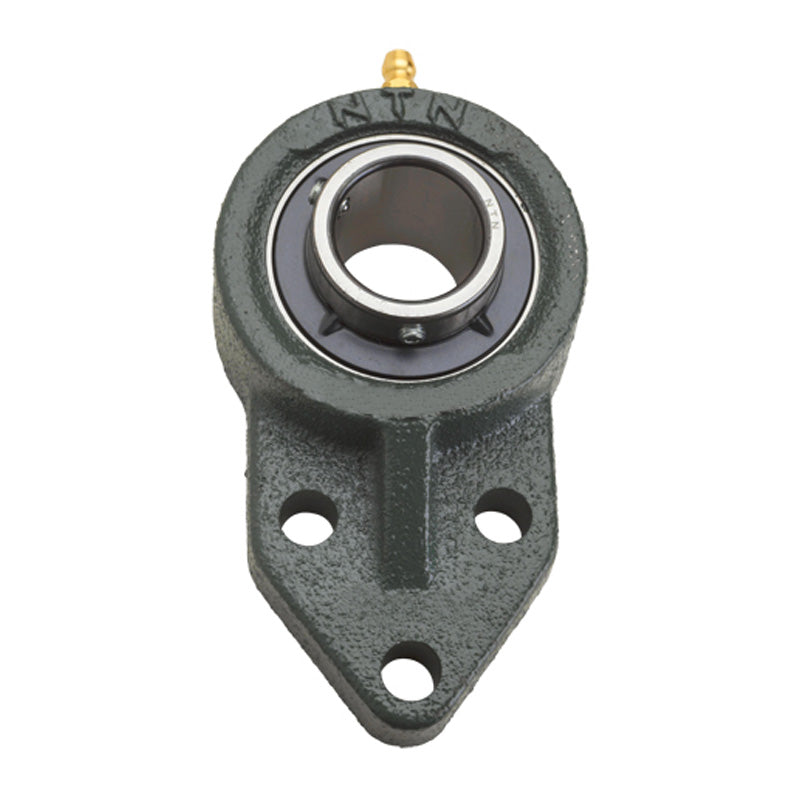

NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
Regular price
£35.44
ex VAT£42.53inc. VAT
Regular price
Sale price
£35.44
ex VAT£42.53
inc. VAT
In stock
Price Break
5+
£35.09
10+
£33.67
20+
£32.96
50+
£31.90
100+
£31.19
500+
£29.42
1000+
£24.81
Couldn't load pickup availability
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFH
- Bolt Hole Centres:
- 40mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H<sub>3</sub> | 130mm |
| J | 40mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 10mm |
| H | 50mm |
| H<sub>1</sub> | 29mm |
| L<sub>1</sub> | 65mm |
| H<sub>2</sub> | 55mm |
| L | 78mm |
| A<sub>0</sub> | 40.2mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M8 |
| Mass | 0.9 kg |
