SKU: M-UCFH205D1-NTN

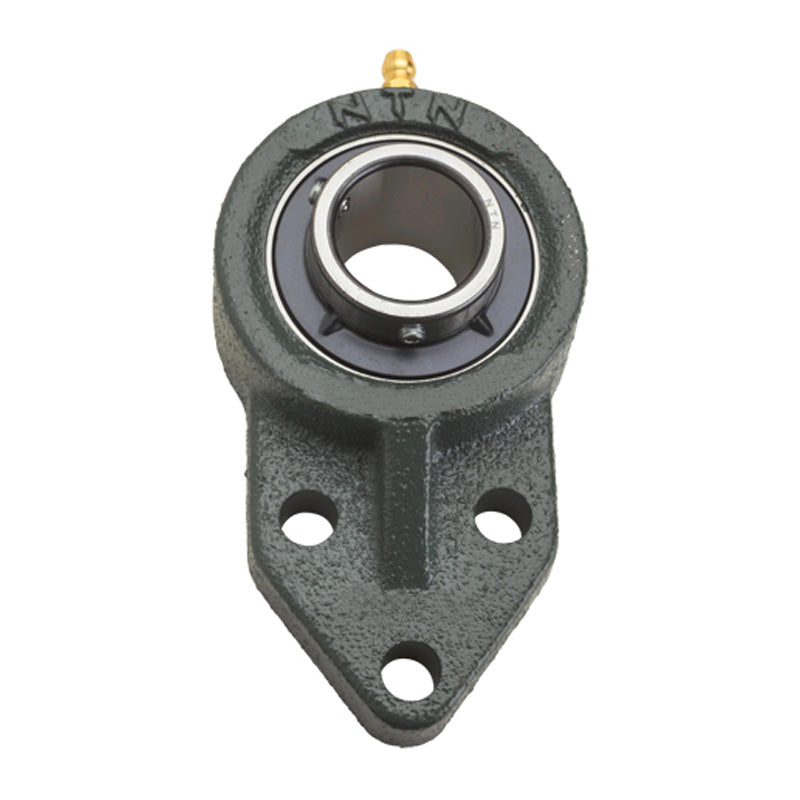

NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
Regular price
£26.48
ex VAT£31.78inc. VAT
Regular price
Sale price
£26.48
ex VAT£31.78
inc. VAT
In stock
Price Break
10+
£23.57
19+
£22.24
29+
£21.98
39+
£21.71
49+
£21.45
74+
£21.18
99+
£19.86
199+
£19.60
249+
£19.33
499+
£19.07
999+
£18.54
Couldn't load pickup availability
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFH
- Bolt Hole Centres:
- 34mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H<sub>3</sub> | 116mm |
| J | 34mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 10mm |
| H | 45mm |
| H<sub>1</sub> | 27mm |
| L<sub>1</sub> | 56mm |
| H<sub>2</sub> | 52mm |
| L | 68mm |
| A<sub>0</sub> | 35.8mm |
| B | 34.1mm |
| S | 14.3mm |
| Fixing bolt | M8 |
| Mass | 0.7 kg |
