SKU: M-UCC206D1-NTN

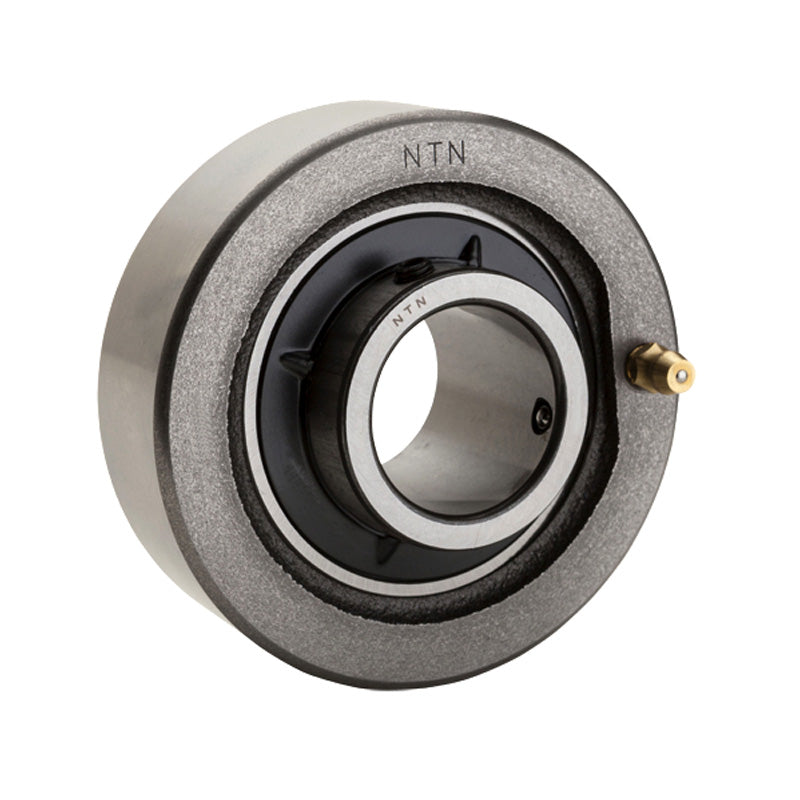

NTN M-UCC206D1 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 85mm Outside Dia - Allow 2-3 Days
NTN M-UCC206D1 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 85mm Outside Dia - Allow 2-3 Days
Regular price
£35.46
ex VAT£42.55inc. VAT
Regular price
Sale price
£35.46
ex VAT£42.55
inc. VAT
In stock
Price Break
5+
£35.11
10+
£33.69
20+
£32.98
50+
£31.91
100+
£31.20
500+
£29.43
1000+
£24.82
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 85mm |
| A | 27mm |
| r | 2mm |
| B | 38.1mm |
| S | 15.9mm |
| Mass | 0.8 kg |
