SKU: M-ASPP203-NTN

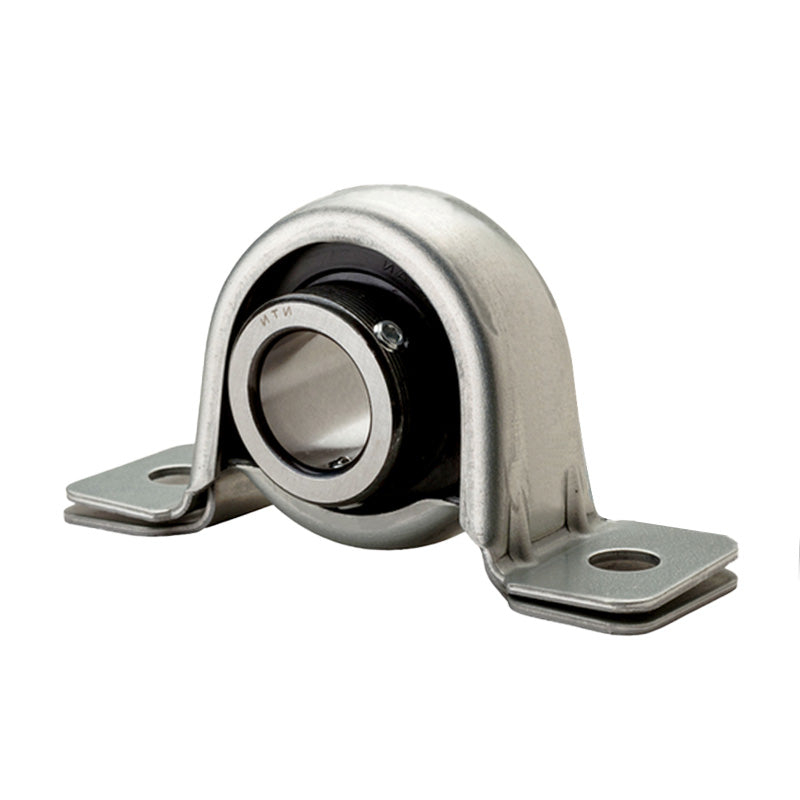

NTN M-ASPP203 Metric Pressed Steel Two Bolt Plummer Block Housing with 17mm Insert - Allow 2-3 Days
NTN M-ASPP203 Metric Pressed Steel Two Bolt Plummer Block Housing with 17mm Insert - Allow 2-3 Days
Regular price
£13.28
ex VAT£15.94inc. VAT
Regular price
Sale price
£13.28
ex VAT£15.94
inc. VAT
In stock
Price Break
3+
£13.15
4+
£12.62
9+
£12.35
19+
£11.95
49+
£11.69
99+
£11.02
499+
£9.30
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
ASPP200 Series 2 Bolt Pressed Steel Pillow Block Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, collar & grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASPP
- Bolt Hole Centres:
- 68mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| H | 22.2mm |
| L | 86mm |
| J | 68mm |
| A | 25mm |
| N | 9.5mm |
| H<sub>1</sub> | 3.2mm |
| H<sub>2</sub> | 43.8mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M8 |
| --- | Load rating |
| Max load recommended radial | 2000 N |
| Max load recommended axial | 800 N |
| --- | Unit information |
| Mass | 0.1 kg |
