SKU: LT.3-1/4

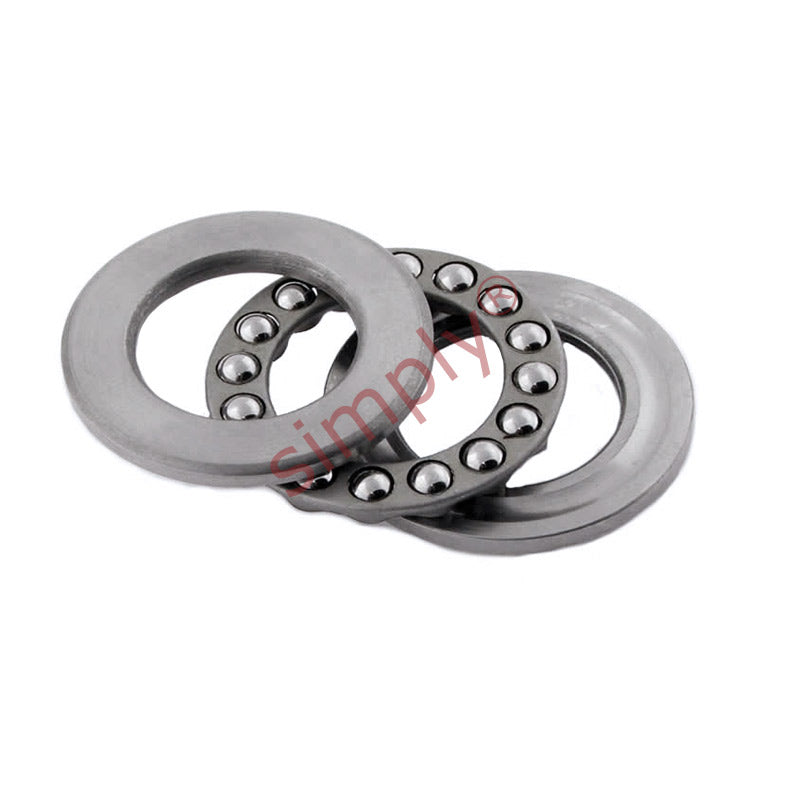

LT3-1/4 Imperial Thrust Ball Bearing 3-1/4x4-13/16x1-1/4 inch
LT3-1/4 Imperial Thrust Ball Bearing 3-1/4x4-13/16x1-1/4 inch
Regular price
£99.60
ex VAT£119.52inc. VAT
Regular price
Sale price
£99.60
ex VAT£119.52
inc. VAT
In stock
Price Break
10+
£88.65
19+
£83.67
29+
£82.67
39+
£81.67
49+
£80.68
74+
£79.68
99+
£74.70
199+
£73.71
249+
£72.71
499+
£71.71
999+
£69.72
Share this product
Description
Description
Imperial Ball Thrust Bearings: Consisting of two grooved washers and a ball race supported in a cage assembly. For ease of assembly they are separable into the three components permitting each part to be mounted individually, This style of bearing offers some element of shaft location, axial load and limited radial load. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 122.24mm = 4.813 (4-13/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Shaft Washer Bore(d) | 3-1/4 inch |
|---|---|
| Housing Washer Bore(D1) | 3-5/16 inch |
| Shaft Washer Outside Diameter(d1) | 4-3/4 inch |
| Housing Washer Outside Diameter(D) | 4-13/16 inch |
| Width | 1-1/4 inch |
