SKU: LRB.242816

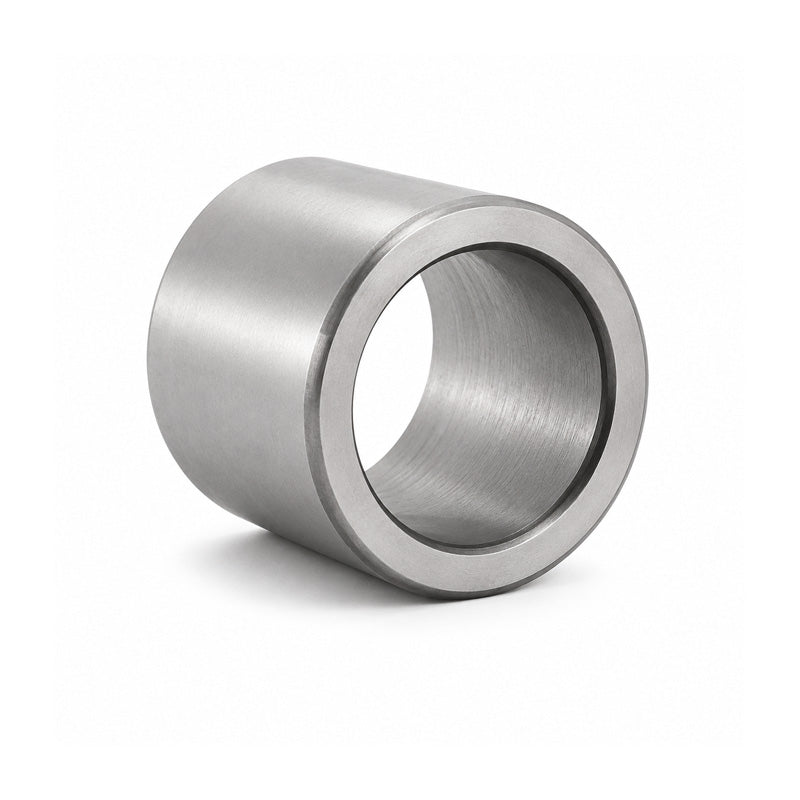

LRB242816 Imperial Needle Roller Inner Race 1-1/2x1-3/4x25.65

Name: LRB242816 Imperial Needle Roller Inner Race 1-1/2x1-3/4x25.65
Brand: IKO
SKU: LRB.242816
Price: 12.44 GBP
Availability: InStock

£12.44 ex VAT£14.93inc. VAT

£12.44 ex VAT£14.93 inc. VAT

Sale Sold out

Equivalent to: IR242816 MI24N PI242816

In stock

Price Break

10+ £11.08

20+ £10.45

30+ £10.33

40+ £10.20

50+ £10.08

75+ £9.96

100+ £9.33

200+ £9.21

250+ £9.08

500+ £8.96

1000+ £8.71

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Imperial Inner Rings:Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. LRB and LRBZ..B types are provided with an oil hole for lubrication.
Benefits: Hardened and ground, precision component, lead in for easier assembly.

Equivalent: IR242816 MI24N PI242816

Brand / Quality:: IKO - High Quality
Inside Diameter:: 38.1mm = 1.5 (1-1/2) inch
Outside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Width:: 25.65mm

Technical

d	1-1/2 inch
F	1-3/4 inch
B	25.65mm
Weight	0.08kg
