SKU: LRB.121616

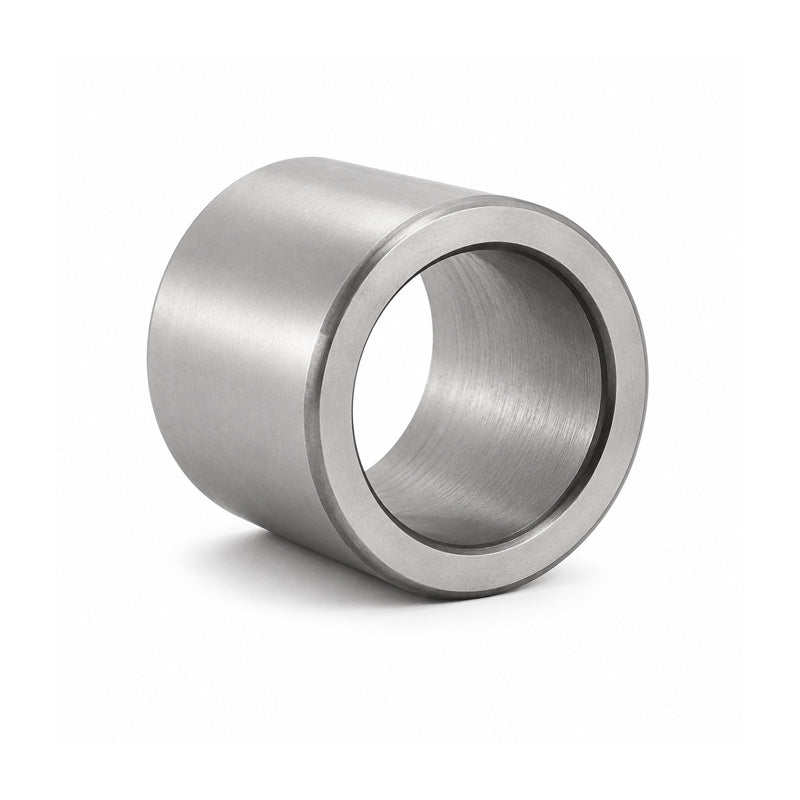

LRB121616 Imperial Needle Roller Inner Race 3/4x1x25.65

Name: LRB121616 Imperial Needle Roller Inner Race 3/4x1x25.65
Brand: IKO
SKU: LRB.121616
Price: 8.82 GBP
Availability: InStock

£8.82 ex VAT£10.58inc. VAT

£8.82 ex VAT£10.58 inc. VAT

Sale Sold out

Equivalent to: IR121616 MI12 IR7194 PI121616

In stock

Price Break

10+ £7.85

20+ £7.41

30+ £7.32

40+ £7.23

50+ £7.14

75+ £7.05

100+ £6.61

200+ £6.53

250+ £6.44

500+ £6.35

1000+ £6.17

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Imperial Inner Rings:Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. LRB and LRBZ..B types are provided with an oil hole for lubrication.
Benefits: Hardened and ground, precision component, lead in for easier assembly.

Equivalent: IR121616 MI12 IR7194 PI121616

Brand / Quality:: IKO - High Quality
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Outside Diameter:: 25.4mm = 1 inch
Width:: 25.65mm

Technical

d	3/4 inch
F	1 inch
B	25.65mm
Weight	0.044kg
