• RHP LFTC30 Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
1 1

SKU: LFTC30-RHP

RHP LFTC30 Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore

RHP LFTC30 Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
£45.32 ex VAT£54.38inc. VAT
£45.32 ex VAT£54.38 inc. VAT
Sale Sold out

In stock

Price Break
10+ £40.33
20+ £38.07
30+ £37.61
40+ £37.16
50+ £36.71
75+ £36.26
100+ £33.99
200+ £33.54
250+ £33.08
500+ £32.63
1000+ £31.72
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

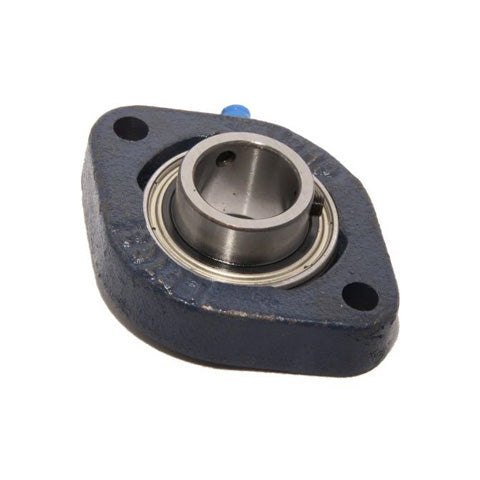

RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
LFTC
Bolt Hole Centres:
90.5mm
Technical
Bore 30mm
L 84mm
H 112mm
J 90.5mm
G 10mm
A 20.5mm
A1 33.62mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
